3 說明
BQ25600 and BQ25600D 是高度集成的 3.0A 開關模式電池充電管理和系統電源路徑管理器件，適用于單節鋰離子和鋰聚合物電池。其低阻抗電源路徑對開關模式運行效率進行了優化、縮短了電池充電時間并延長了放電階段的電池使用壽命。具有充電和系統設置的 I2C 串行接口使得此器件成為一種真正靈活的解決方案。
器件信息
| 器件型號 | 封裝(1) | 封裝尺寸（標稱值） |
|---|---|---|
| BQ25600 | WCSP (30) | 2.00mm × 2.40mm |
| BQ25600D |
(1) 如需了解所有可用封裝，請參閱數據表末尾的可訂購產品附錄。

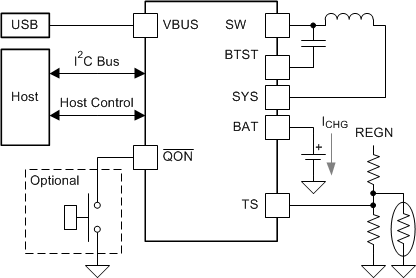

簡化版應用
