8.7 Typical Characteristics

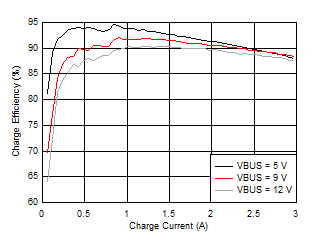

| VBUS = 5 V, 9 V, 12 V | VBAT = 3.8 V | Inductor 1μH, DCR = 14.6 mΩ |

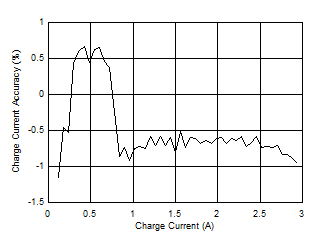

Figure 8-3 Charge Current Accuracy

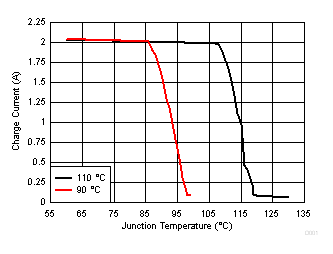

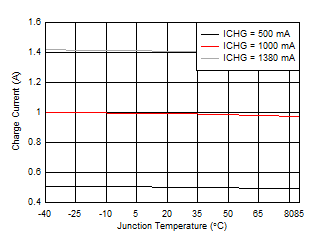

Figure 8-5 Charge Current vs Junction Temperature

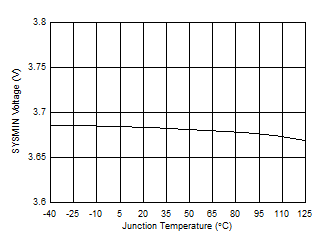

Figure 8-7 SYSMIN Voltage vs Junction Temperature (VSYS set at 3.5V)

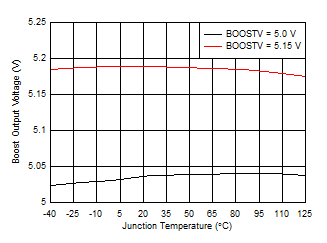

Figure 8-9 Boost Output Voltage vs Junction Temperature

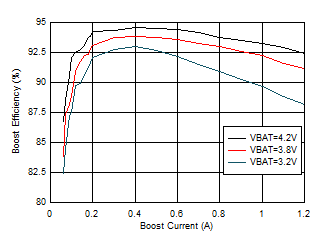

| VBAT = 3.2 V, 3.8 V, 4.2 V | VBUS = 5 V | Inductor 1μH, DCR = 14.6 mΩ |

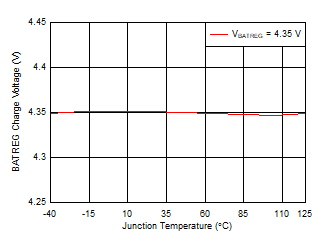

Figure 8-4 Battery Charge Voltage vs Junction Temperature

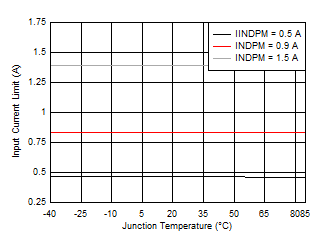

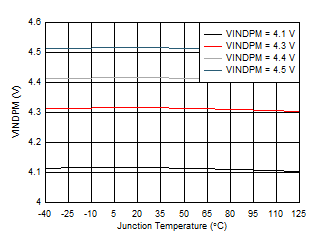

Figure 8-6 VINDPM vs Junction Temperature
Figure 8-8 Input Current Limit vs Junction Temperature
Figure 8-10 Charge Current vs Junction Temperature
