10 器件和文檔支持

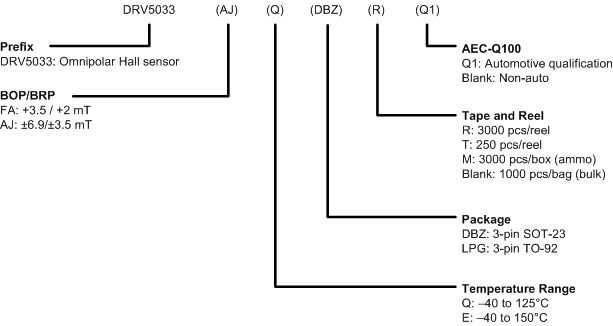

10.1 器件支持
10.1.2 器件標記
Figure 24. SOT-23 (DBZ) 封裝
Figure 25. TO-92 (LPG) 封裝

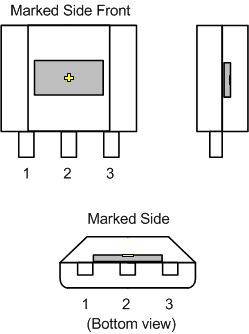

表示霍爾效應傳感器（未按比例顯示）。霍爾元件置于封裝中央位置，容差為 ±100µm。在 DBZ 封裝中，霍爾元件與封裝底部的距離為 0.7mm ± 50µm；在 LPG 封裝中，霍爾元件與封裝底部的距離為 0.987mm ± 50µm。10.2 社區資源
