8.2.1 Current Summing
The outputs of multiple INA28x-Q1 family devices are easily summed by connecting the output of one INA28x-Q1 family device to the reference input of a second INA28x-Q1 family device. The circuit configuration shown in Figure 8-1 is an easy way to achieve current summing.
NOTE: The voltage applied to the reference inputs must not exceed 9 V.

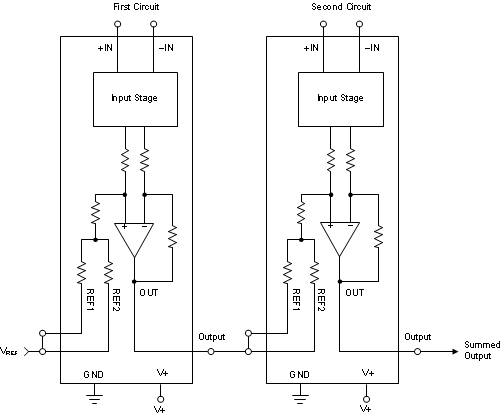

Figure 8-2 Summing the Outputs of Multiple INA28x-Q1 Family Devices
