3 說明
LM25148 是一款 42V 超低 IQ 同步降壓直流/直流控制器，適合高電流單輸出應用。該控制器使用峰值電流模式控制架構，可實現簡單環路補償、快速瞬態響應和出色的負載和線路調節性能。LM25148 可設置為以交錯模式（并聯輸出）運行，實現精確的電流共享，適合高電流應用。它可在低至 3.5V 的輸入電壓和接近 100% 的占空比（如果需要）下運行。
LM25148 具有一種獨特的 EMI 降低特性，稱為雙隨機展頻 (DRSS)。將低頻三角調制與高頻隨機調制相結合，可分別在低頻和高頻頻帶上降低 EMI 干擾。此項混合技術符合業界通用的 EMC 測試中指定的多種分辨率帶寬 (RBW) 設置。
器件信息
| 器件型號 | 封裝(1) | 封裝尺寸（標稱值） |
|---|---|---|
| LM25148 | VQFN (24) | 3.5mm × 5.5mm |
(1) 如需了解所有可用封裝，請參閱數據表末尾的可訂購產品附錄
典型應用原理圖

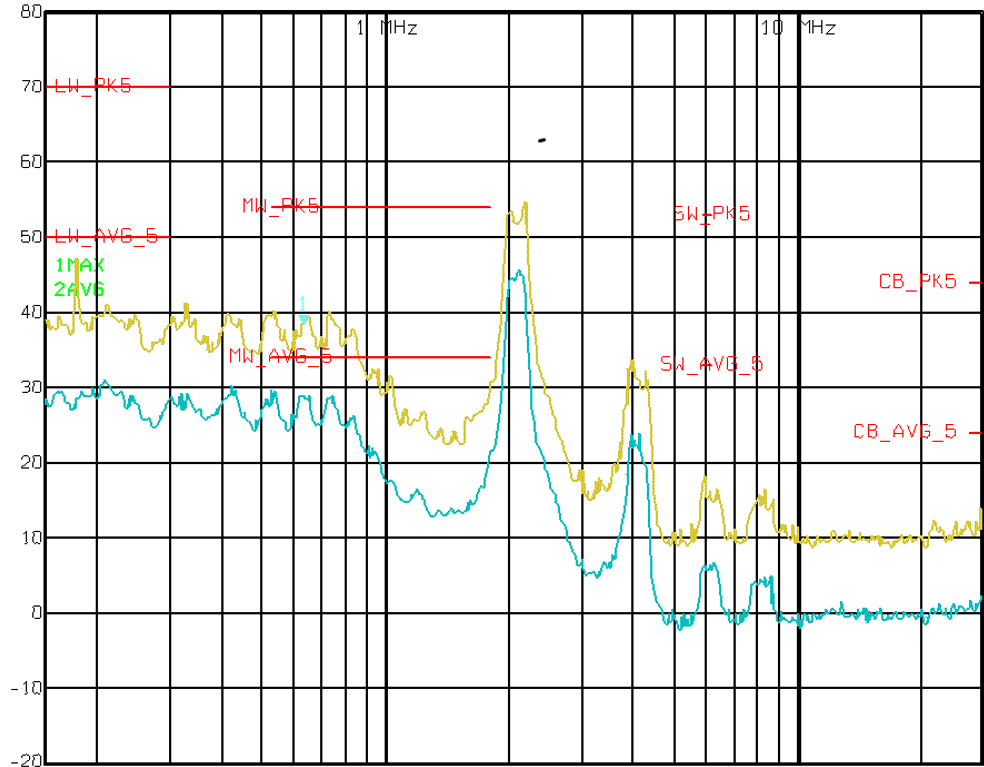

CISPR 25 EMI 性能，150kHz 至 30MHz
