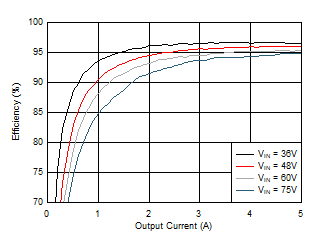

9.2.3.3 Application Curves

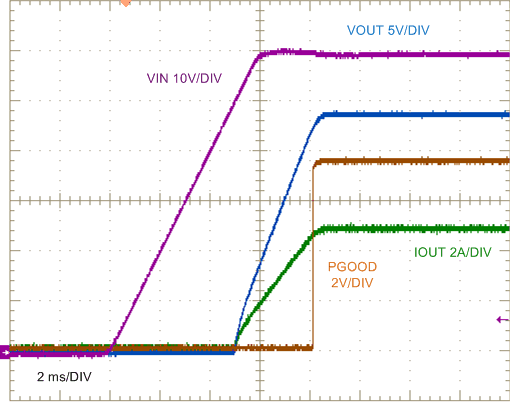

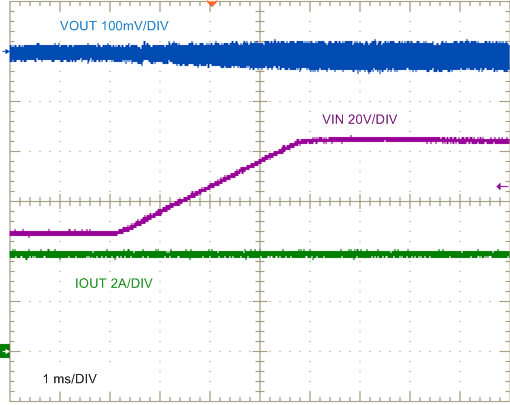

| VIN ramped to 60 V | 5-Ω Load |
| VIN = 60 V | 5-Ω Load |
| VIN = 48 V |
| IOUT = 5 A |
| VIN = 60 V | IOUT = 0 A |
| VIN = 48 V | IOUT = 5 A |

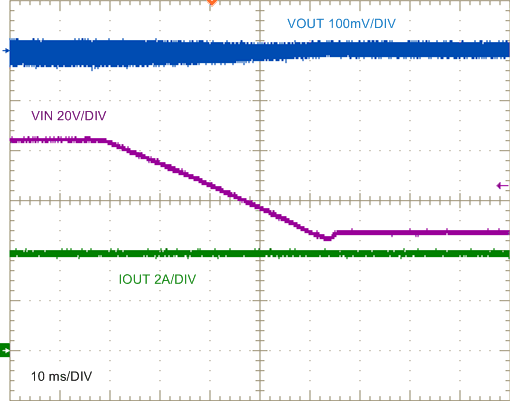

| VIN 85 V to 48 V | 5-Ω Load |
| VIN = 60 V | 5-Ω Load |
| VIN = 48 V |
| IOUT = 5 A |
| VIN = 48 V | IOUT = 0 A |
