3 說明
LM5156xH-Q1（LM5156H-Q1 和 LM51561H-Q1）器件是采用峰值電流模式控制、具有寬輸入范圍的非同步升壓控制器。該器件可用于升壓、SEPIC 和反激式拓?fù)洹?/p>
如果 BIAS 引腳連接到 VCC 引腳，該器件可由單節電池（最低電壓 2.97V）啟動。如果 BIAS 引腳電壓高于 3.5V，則該器件可使用低至 1.5V 的輸入電源電壓。
器件信息
| 器件型號 | 封裝(1) | 封裝尺寸（標稱值） |
|---|---|---|
| LM5156xH-Q1 | HTSSOP (14) | 5.0mm × 4.4mm |
(1) 如需了解所有可用封裝，請參閱數據表末尾的可訂購產品附錄。

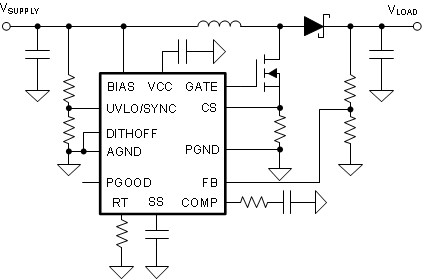

典型升壓應用
