ZHCSJD7C April 2002 – February 2019 SN65LVDT14 , SN65LVDT41
PRODUCTION DATA.
- 1 特性
- 2 應用
- 3 說明
- 4 修訂歷史記錄
- 5 Pin Configuration and Functions
-
6 Specifications
- 6.1 Absolute Maximum Ratings
- 6.2 ESD Ratings
- 6.3 Recommended Operating Conditions
- 6.4 Thermal Information
- 6.5 Receiver Electrical Characteristics
- 6.6 Driver Electrical Characteristics
- 6.7 Device Electrical Characteristics
- 6.8 Receiver Switching Characteristics
- 6.9 Driver Switching Characteristics
- 6.10 Typical Characteristics
- 7 Parameter Measurement Information
- 8 Detailed Description
- 9 Application and Implementation
- 10Power Supply Recommendations
- 11Layout
- 12器件和文檔支持
- 13機械、封裝和可訂購信息
封裝選項
請參考 PDF 數據表獲取器件具體的封裝圖。
機械數據 (封裝 | 引腳)
- PW|20
散熱焊盤機械數據 (封裝 | 引腳)
訂購信息
6.3 Recommended Operating Conditions
| MIN | NOM | MAX | UNIT | ||
|---|---|---|---|---|---|
| VCC | Supply voltage | 3 | 3.3 | 3.6 | V |
| VIH | High-level input voltage | 2 | V | ||
| VIL | Low-level input voltage | 0.8 | V | ||
| |VID| | Magnitude of differential input voltage | 0.1 | 0.6 | V | |
| VIC | Common-mode input voltage, See Figure 1 |
 |
 |
V | |
| VCC – 0.8 | V | ||||
| TA | Operating free-air temperature | –40 | 85 | °C | |

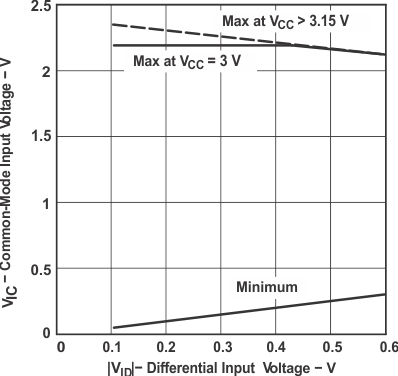

Figure 1. VIC vs VID and VCC
