8.2.1 12-V to 24-V Nonsynchronous Boost Regulator
The following example illustrates the design process and component selection for a 12-V to 24-V nonsynchronous boost regulator using the TPS40210 controller.

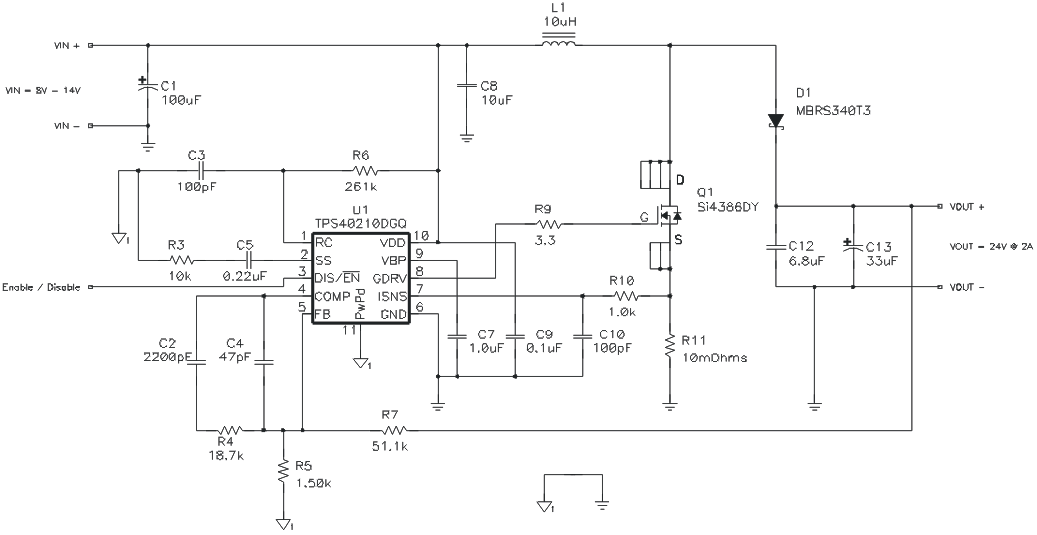

Figure 8-1 TPS40210 Design Example – 12 V to 24 V at 2 A
