ZHCSJU1E May 2008 – May 2019 TPS61087
PRODUCTION DATA.
- 1 特性
- 2 應用
- 3 說明
- 4 修訂歷史記錄
- 5 Pin Configuration and Functions
- 6 Specifications
- 7 Detailed Description
- 8 Application and Implementation
- 9 Power Supply Recommendations
- 10Layout
- 11器件和文檔支持
- 12機械、封裝和可訂購信息
封裝選項
機械數據 (封裝 | 引腳)
散熱焊盤機械數據 (封裝 | 引腳)
訂購信息
8.3.1 General Boost Application Circuits

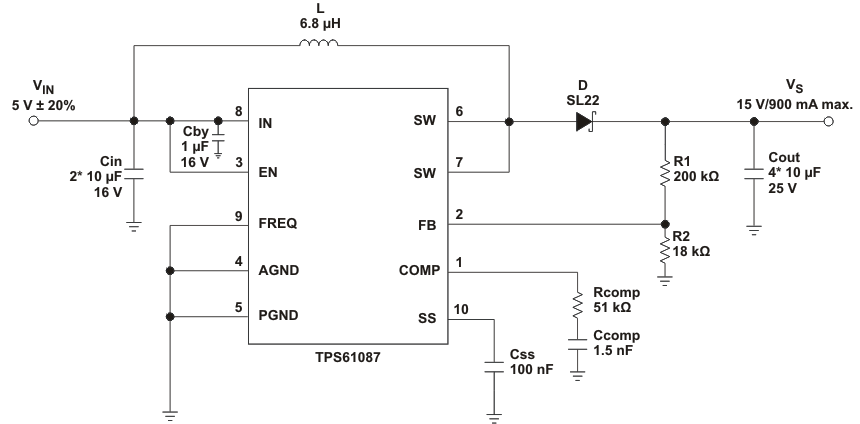

Figure 14. Typical Application, 5 V to 15 V (fS = 650 kHz)

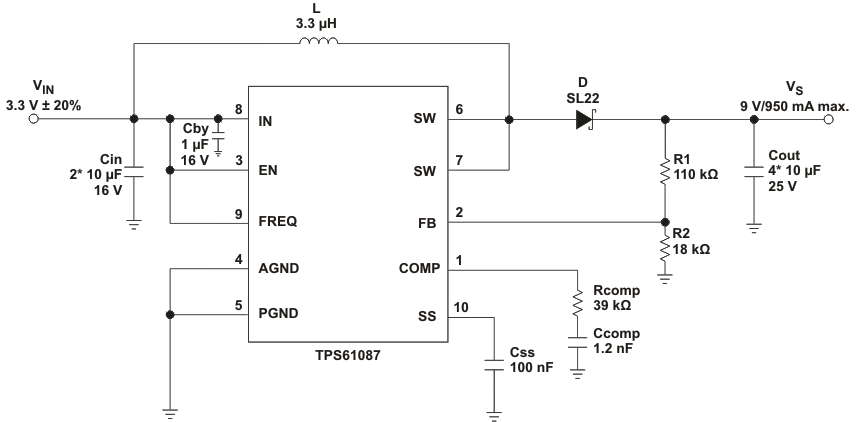

Figure 15. Typical Application, 3.3 V to 9 V (fS = 1.2 MHz)

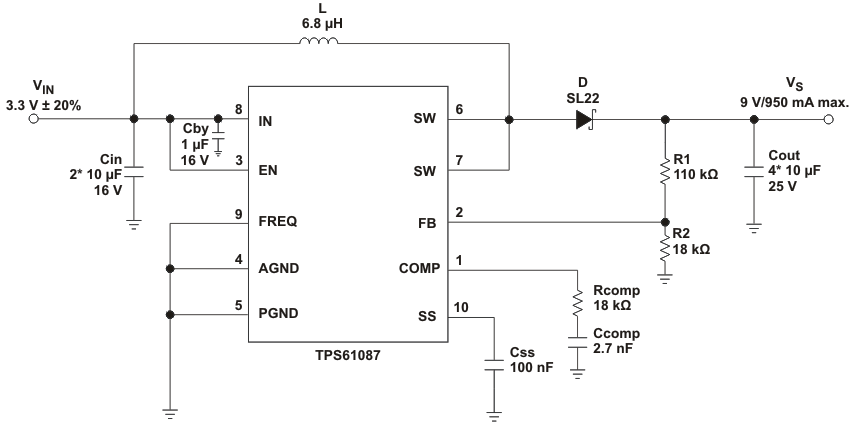

Figure 16. Typical Application, 3.3 V to 9 V (fS = 650 kHz)

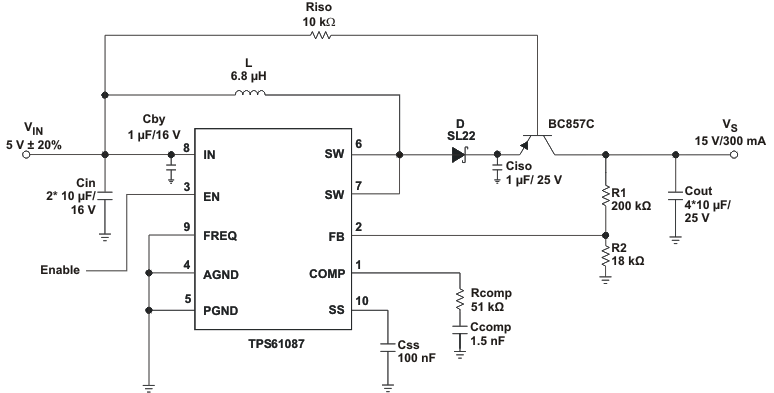

Figure 17. Typical Application With External Load Disconnect Switch

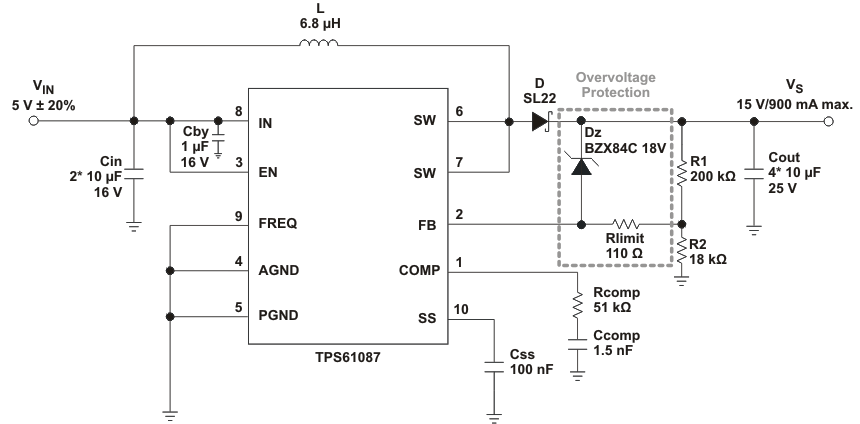

Figure 18. Typical Application, 5 V to 15 V (fS = 1.2 MHz) With Overvoltage Protection
