8.2.3 Application Curves
Figure 8-32 and Figure 8-33 show the design noise and PSRR performance after inserting the pi-filter.

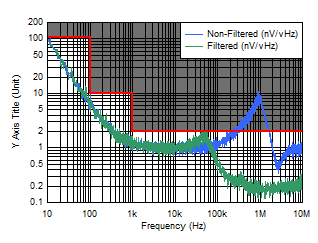

Figure 8-32 Noise
vs Frequency

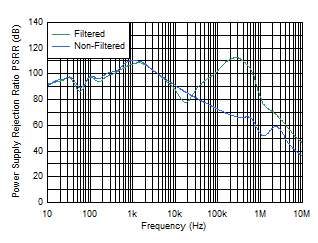

Figure 8-33 PSRR
vs Frequency
