4.1 Hardware Connections Overview – MCT8315EVM
Figure 4-1shows the major blocks of MCT8315EVM evaluation module. The MCT8315EVM is designed for an input supply from 4.5-V to 35-V. The MCT8315 includes three integrated half-bridges and implements a sensorless trapezoidal control algorithm to spin a motor with up to 5-A peak current. It also integrates an adjustable buck regulator.

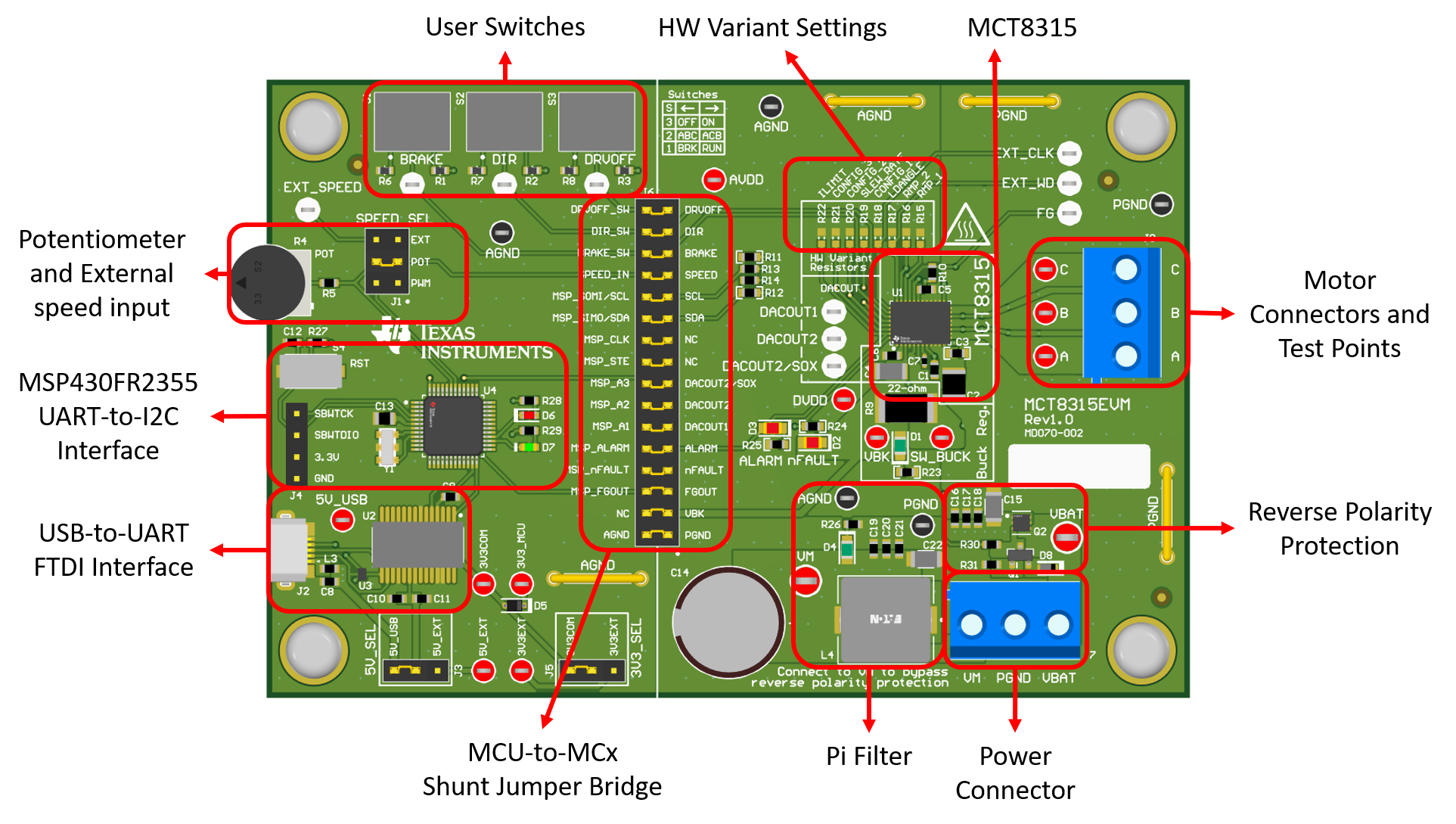

Figure 4-1 MCT8315EVM Major Hardware Blocks
