5.1 Switch Settings

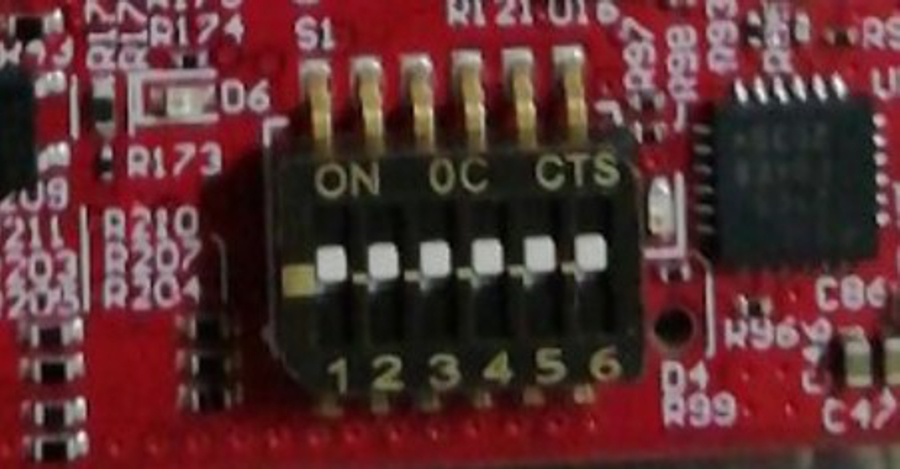

Figure 5-1 shows the part designators and positions of the switches on the IWR6843LEVM.
Figure 5-1 Part Designators and Positions
of the Switches on the IWR6843LEVMTable 5-1 Switches, Buttons and
Muxes
| Reference Designator | Switch On | Switch Off |
|---|---|---|
| S1.1 | SOP2 pulled up | SOP2 pulled down |
| S1.2 | SOP1 pulled up | SOP1 pulled down |
| S1.3 | SOP0 pulled up | SOP0 pulled down |
| S1.4 | Muxes to CAN connector J3, J4 | Muxes to serial peripheral interface (SPI) on 60 pin connector, J1, J6 |
| S1.5 | Muxes USER UART to 60 pin header J1 | Muxes USER UART to USB connector J5 |
| S1.6 | - | - |
| S2 | Reset switch | |
| S3 | GPIO1 toggle switch | |
