9.2.1 Design 1: Wide VIN, Low IQ PSR Flyback Converter Rated at 5 V, 0.5 A
The schematic diagram of a 5-V, 0.5-A PSR flyback converter is given in Figure 9-1.

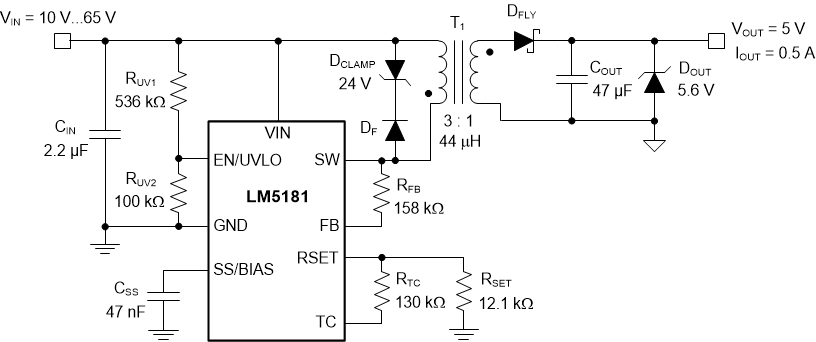

Figure 9-1 Schematic for Design 1 With VIN(nom) = 24 V, VOUT = 5 V, IOUT = 0.5 A
