7.3.4 Noise Performance
Typical 0.1-Hz to 10-Hz voltage noise can be seen in Figure 7-2. The noise voltage of the REF31xx-Q1 increases with output voltage and operating temperature. Additional filtering may be used to improve output noise levels, although take care to ensure the output impedance does not degrade the AC performance.

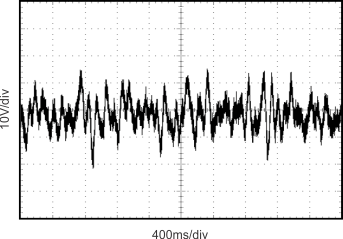

Figure 7-2 0.1-Hz to 10-Hz Noise
