7.4.2 Data Acquisition
Data acquisition systems often require stable voltage references to maintain accuracy. The REF31xx-Q1 family features stability and a wide range of voltages suitable for most microcontrollers and data converters. Figure 7-6, Figure 7-7, and Figure 7-8 show basic data acquisition systems.
Figure 7-6 Basic
Data Acquisition System 1

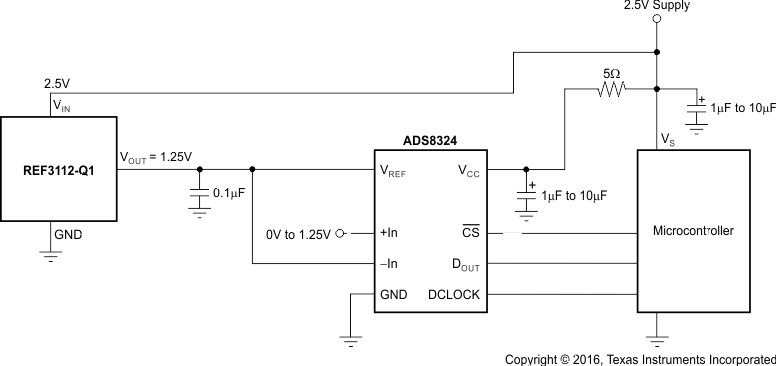

Figure 7-7 Basic
Data Acquisition System 2
Figure 7-8 REF3140-Q1 Provides an Accurate Reference for Driving the ADS8381
