8.4.4 DSI Lane Merging
The SN65DSI84-Q1 supports four DSI data lanes per input channel, and may be configured to support one, two, or three DSI data lanes per channel. Unused DSI input pins on the SN65DSI84-Q1 should be left unconnected or driven to LP11 state. The bytes received from the data lanes are merged in HS mode to form packets that carry the video stream. DSI data lanes are bit and byte aligned.

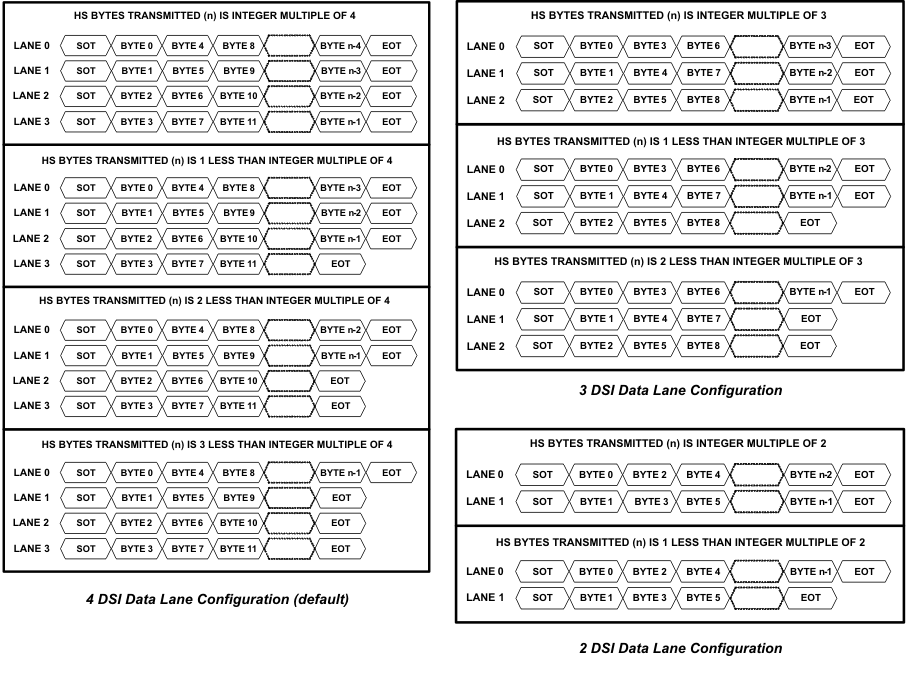

Figure 12 illustrates the lane merging function for each channel; 4-Lane, 3-Lane, and 2-Lane modes are illustrated
Figure 12. SN65DSI84-Q1 DSI Lane Merging Illustration
