9.2.1.3 Application Curve

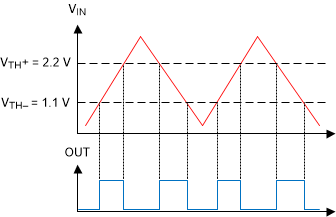

Figure 9-8 Window Comparator ResultsFor more information, please see Application note SBOA221 "Window comparator circuit".
