8.2.3 Application Curves

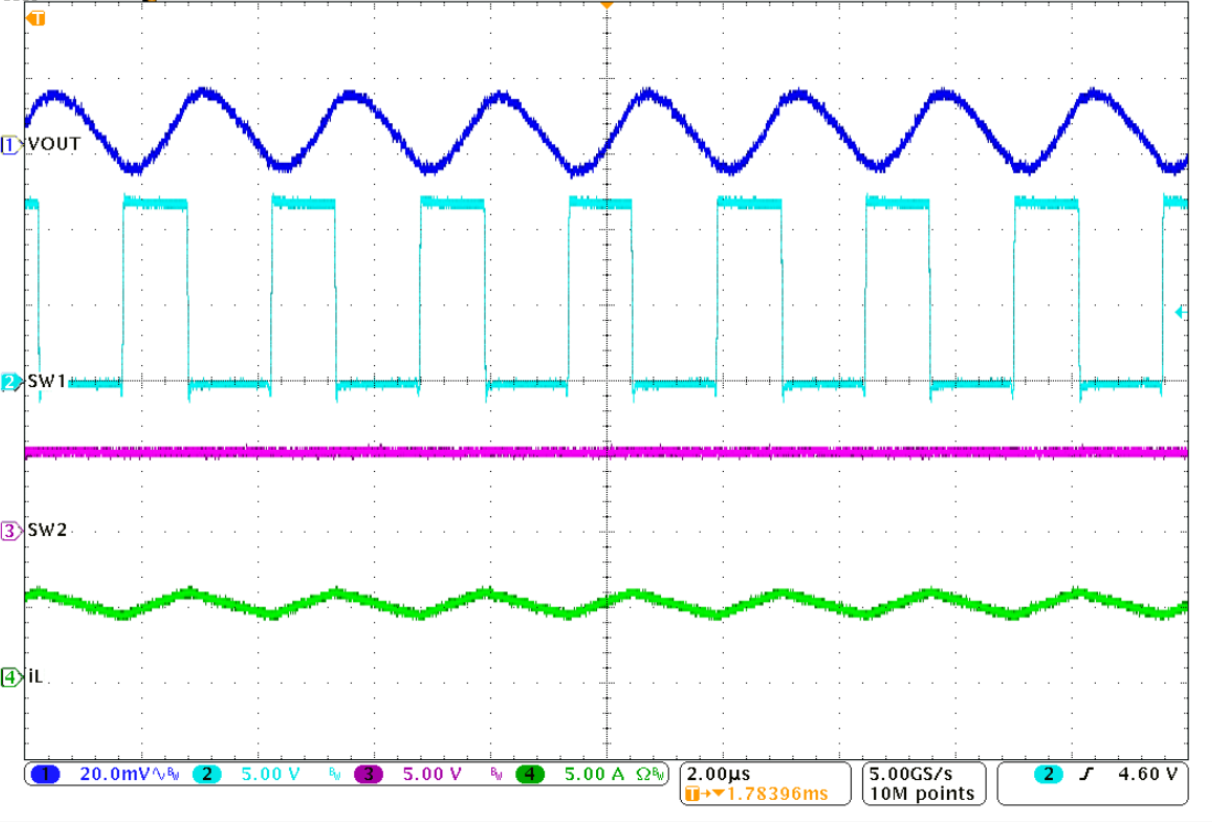

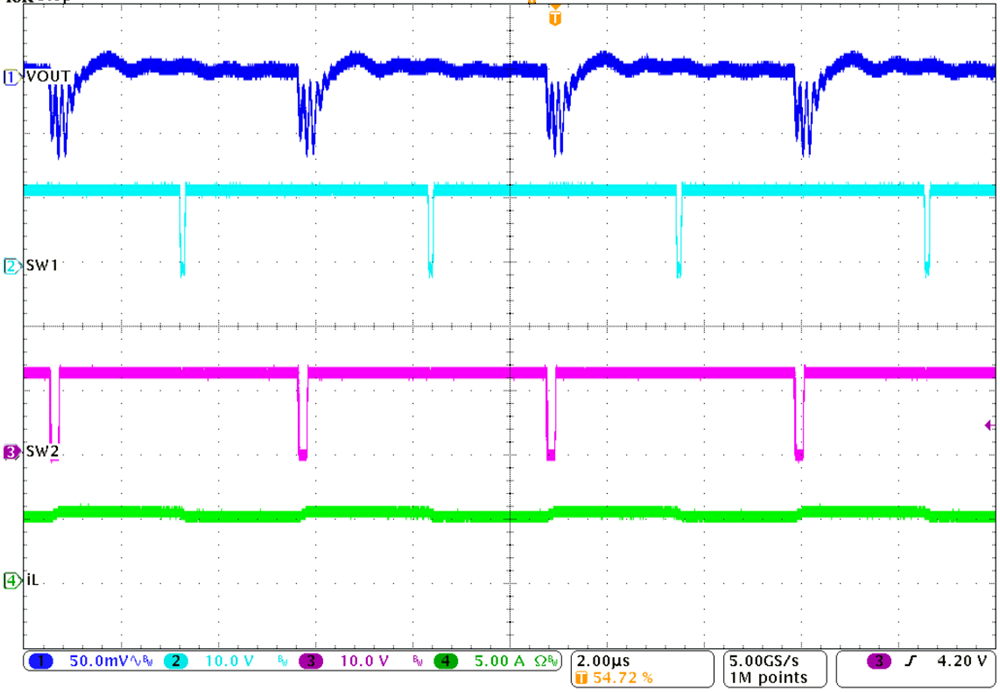

Figure 8-2 Switching Waveforms in VIN = 12 V, VOUT = 5 V,
IO = 5 A, FPWM
Figure 8-4 Switching Waveforms in
VIN = 12 V, VOUT = 12 V, IO = 5 A,
FPWM

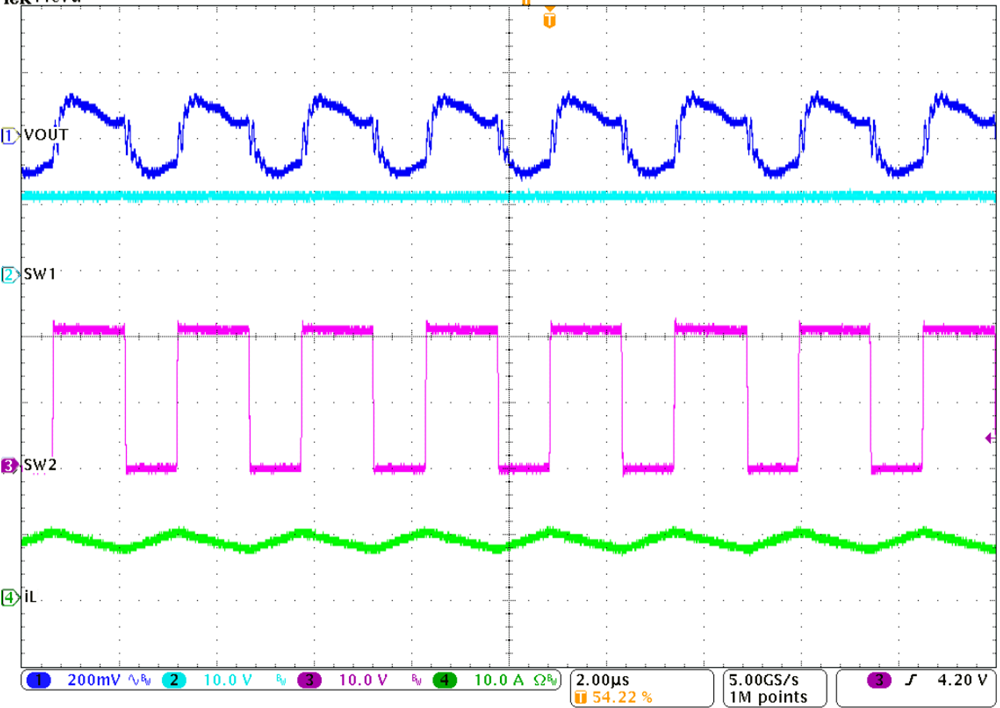

Figure 8-6 Switching Waveforms in
VIN = 12 V, VOUT = 20 V, IO = 5 A,
FPWM

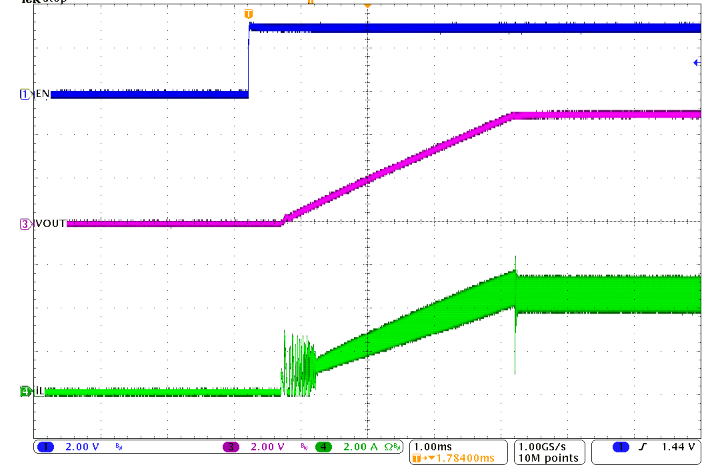

Figure 8-8 Start-up Waveforms in
VIN = 12 V, VOUT = 5 V, IO = 5 A,
FPWM

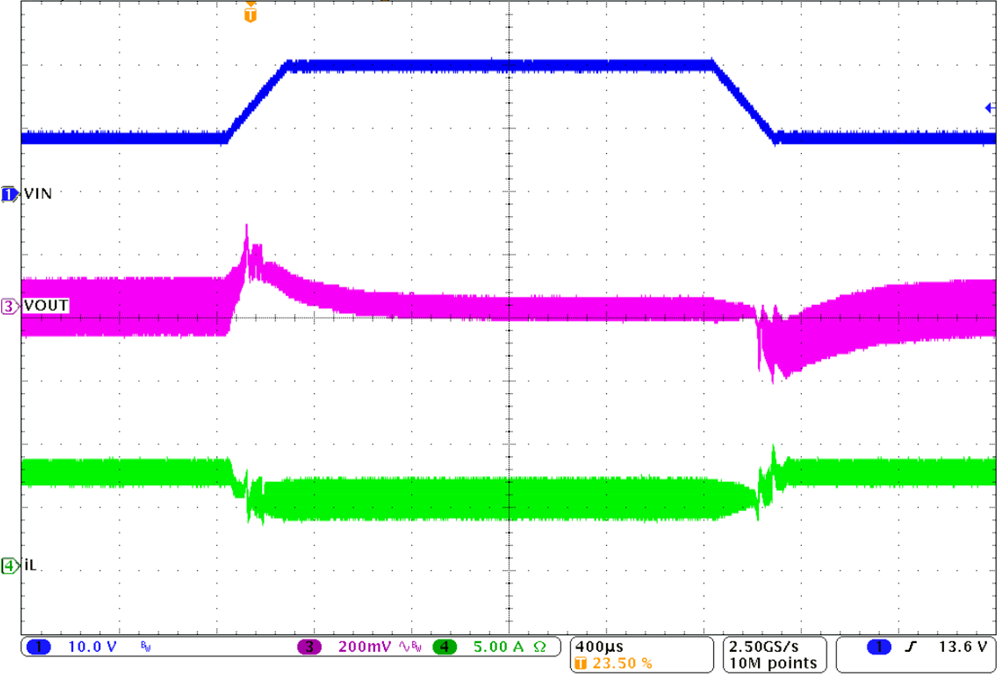

Figure 8-10 Line Transient Waveforms
in VIN = 9 V to 20 V, VOUT = 12 V, IO = 5 A
with 200-μs Slew Rate, FPWM
Figure 8-12 Output Current Limit
Waveforms in VIN = 12 V, VOUT = 5 V, RLOAD
= 0.9 Ω, RSNS = 10 mΩ, FPWM

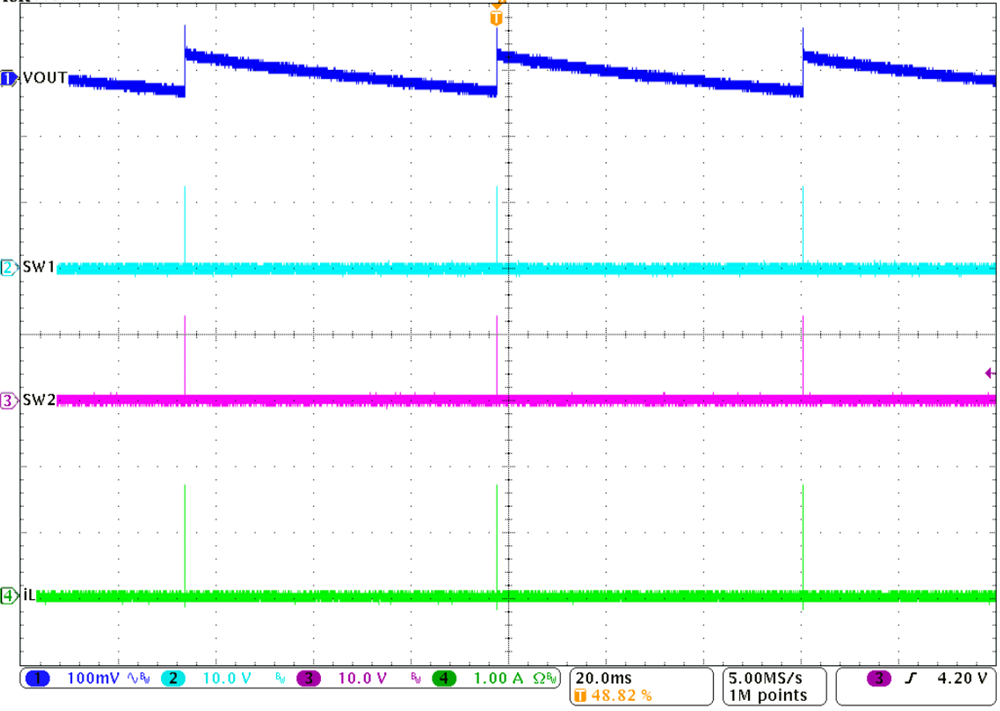

Figure 8-3 Switching Waveforms in VIN = 12 V, VOUT = 5 V,

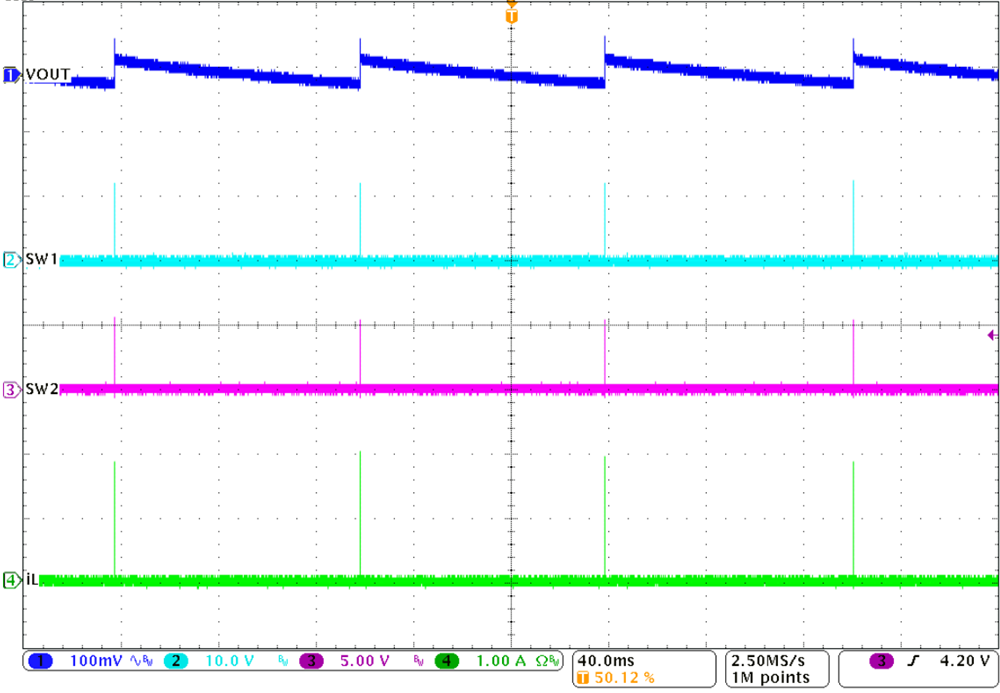

IO = 0 A, PFM
Figure 8-5 Switching Waveforms in
VIN = 12 V, VOUT = 12 V, IO = 0 A,
PFM

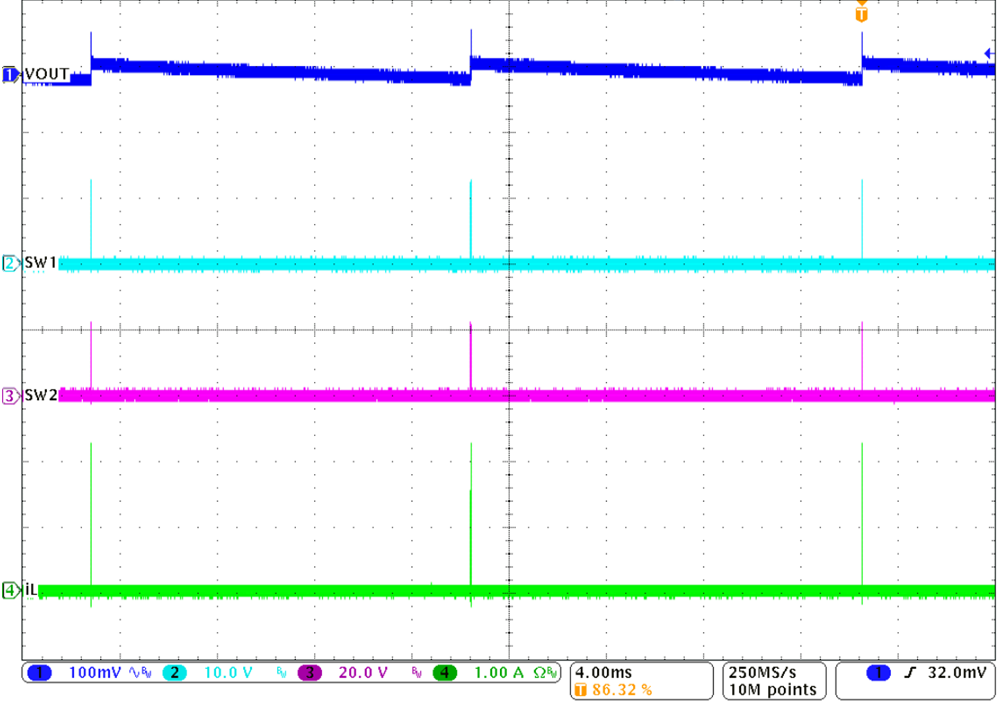

Figure 8-7 Switching Waveforms in
VIN = 12 V, VOUT = 20 V, IO = 0 A,
PFM

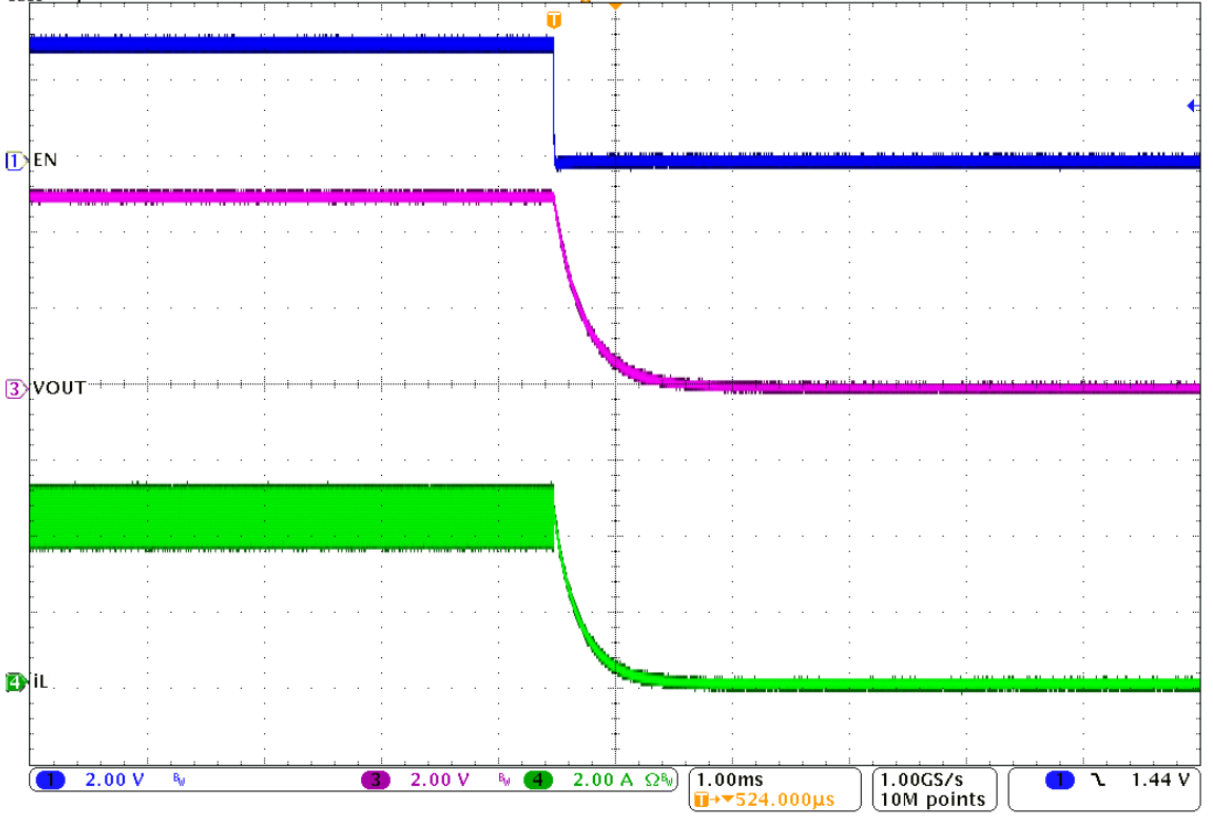

Figure 8-9 Shutdown Waveforms in
VIN = 12 V, VOUT = 5 V, IO = 5 A,
FPWM

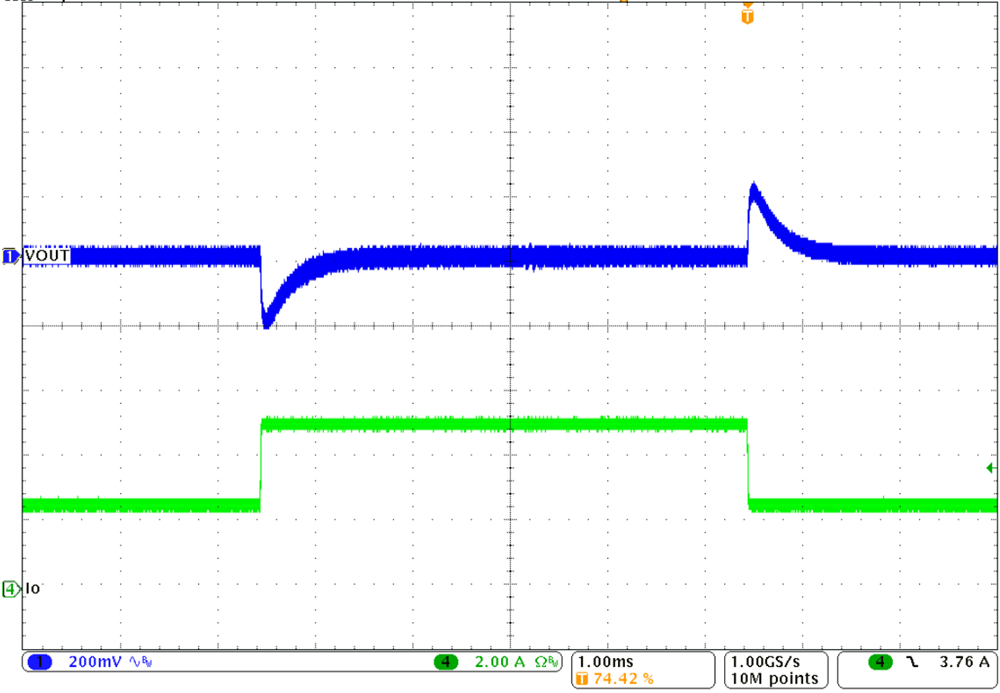

Figure 8-11 Load Transient Waveforms
in VIN = 12 V, VOUT = 5 V, IO = 2.5 A to 5
A with 20-μs Slew Rate, FPWM
