SLVU443A March 2011 – September 2021 TPS54429
4.6 Load Transient Response
The TPS54429EVM-608 response to load transient is shown in Figure 4-5. The current step is from 1.25 A to 3.25 A. Total peak-to-peak voltage variation is as shown.

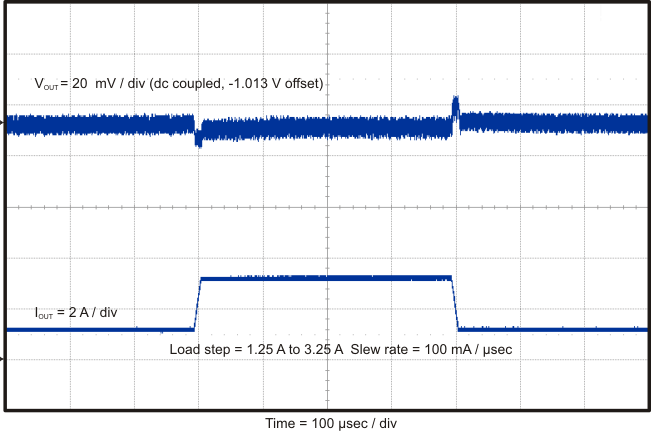

Figure 4-5 TPS54429EVM-608 Load Transient Response
