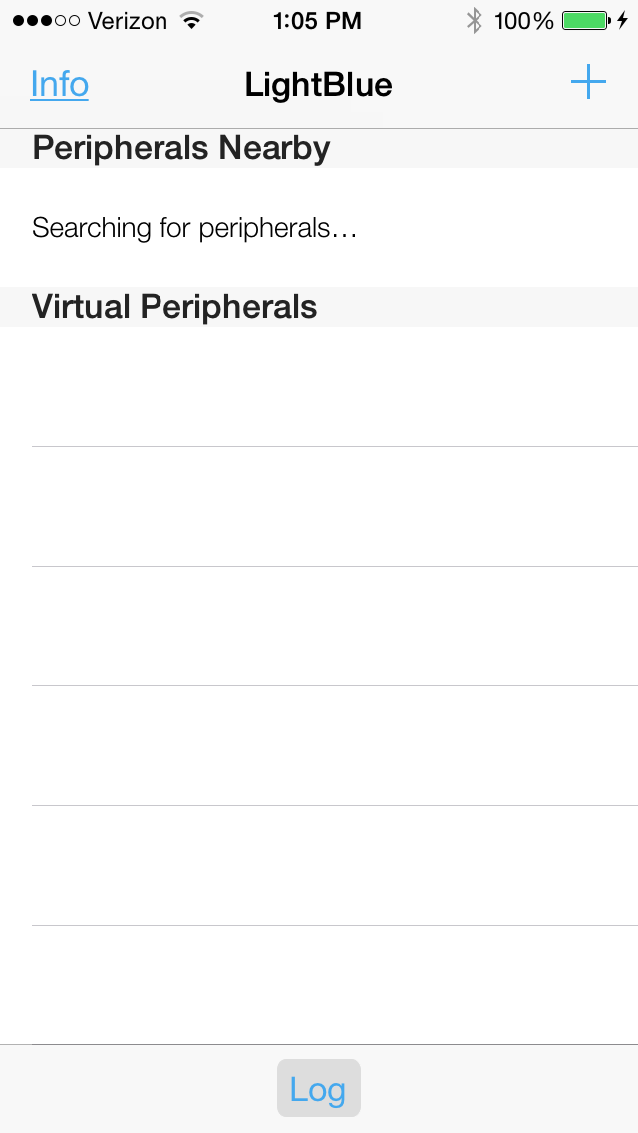

首先，在設備之間建立連接。為此，請打開 LightBlue 應用，觀察類似于以下內容的屏幕：

在 SPPLEDemo 終端中，將該應用作為服務器啟動，注冊 SPP LE 服務，然后使用 Server、RegisterSPPLE 和 AdvertiseLE 1 命令開始廣播。在終端中觀察到以下內容：

OpenStack().
Bluetooth Stack ID: 1.
Device Chipset: 4.1.
BD_ADDR: 0x0017e9d3581a

Command Options: Server, Client, Help

SPP+LE>Server

 Command Options General: Help, GetLocalAddress, SetBaudRate
 Quit,
 Command Options BR/EDR: Inquiry, DisplayInquiryList, Pair,
 EndPairing, PINCodeResponse,
 PassKeyResponse,
 UserConfirmationResponse,
 SetDiscoverabilityMode,
 SetConnectabilityMode,
 SetPairabilityMode,
 ChangeSimplePairingParameters,
 GetLocalName, SetLocalName,
 GetClassOfDevice, SetClassOfDevice,
 GetRemoteName, SniffMode,
 ExitSniffMode, Open, Close, Read,
 Write, GetConfigParams,
 SetConfigParams, GetQueueParams,
 SetQueueParams, Loopback,
 DisplayRawModeData, AutomaticReadMode,
 CBSend.
 Command Options GAPLE: SetDiscoverabilityMode,
 SetConnectabilityMode,
 SetPairabilityMode,
 ChangePairingParameters,
 AdvertiseLE, StartScanning,
 StopScanning, ConnectLE,
 DisconnectLE, PairLE,
 LEPasskeyResponse,
 QueryEncryptionMode, SetPasskey,
 DiscoverGAPS, GetLocalName,
 SetLocalName, GetLERemoteName,
 SetLocalAppearance,
 GetLocalAppearance,
 GetRemoteAppearance,
 Command Options SPPLE: DiscoverSPPLE, RegisterSPPLE, LESend,
 ConfigureSPPLE, LERead, Loopback,
 DisplayRawModeData, AutomaticReadMode

SPP+LE>RegisterSPPLE
Sucessfully registered SPPLE Service.
SPP+LE>AdvertiseLE 1
GAP_LE_Advertising_Enable success.

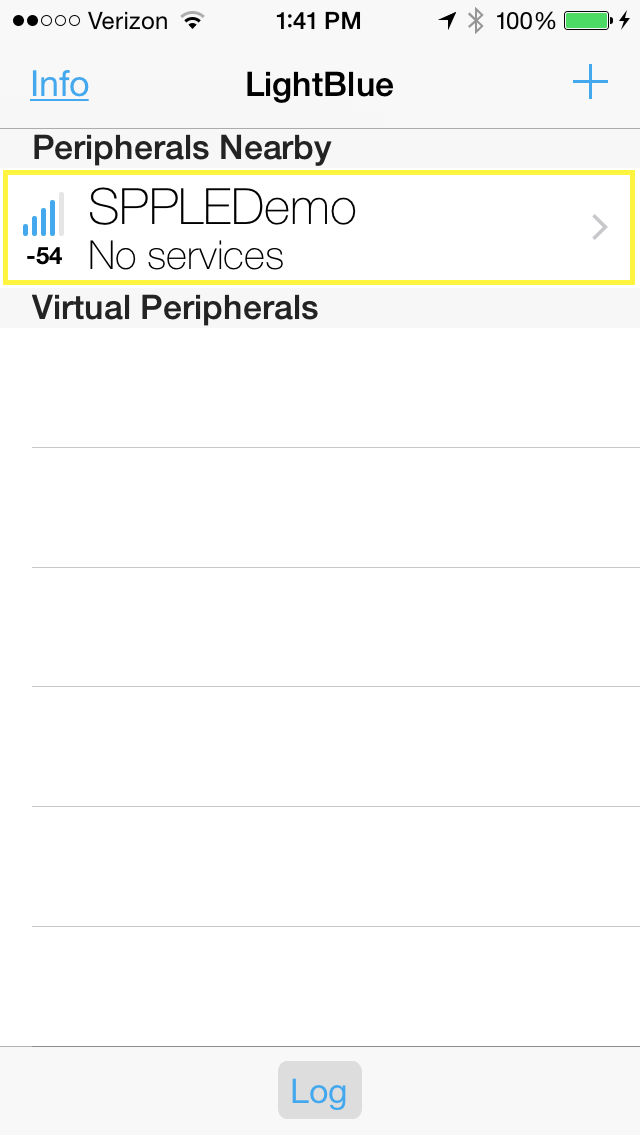

現在 SPPLEDemo 正在進行廣播，請觀察 LightBlue 中顯示的設備：

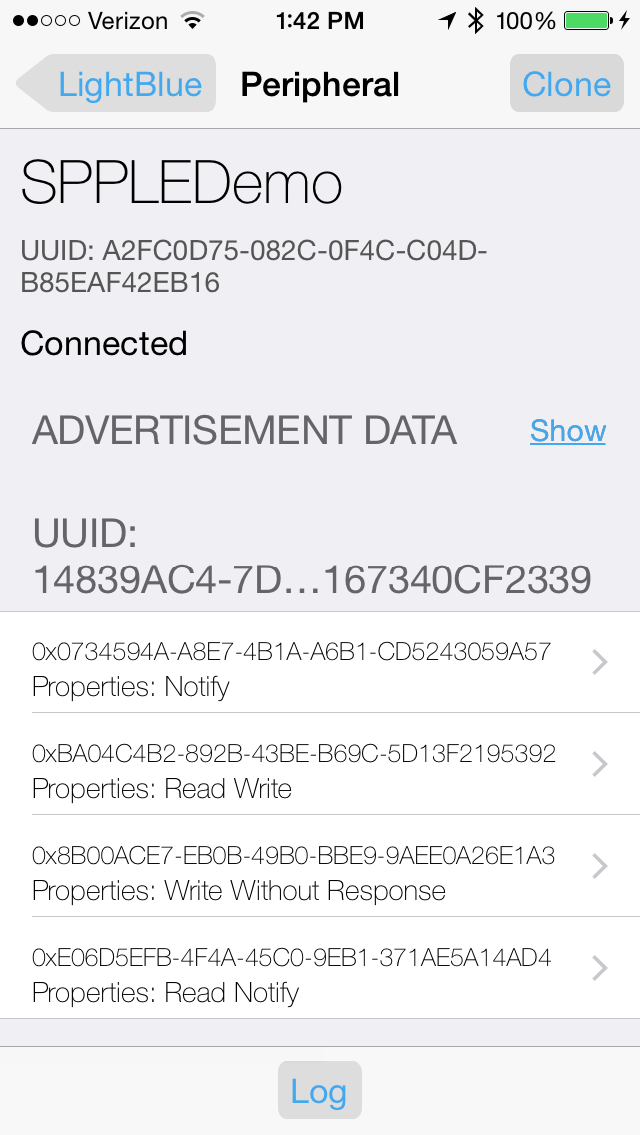

接下來，在 LightBlue 中選擇 SPPLEDemo 設備，然后觀察以下屏幕：

在 SPPLEDemo 終端中，觀察以下內容：

etLE_Connection_Complete with size 16.
Status: 0x00.
Role: Slave.
Address Type: Random.
BD_ADDR: 0x5cfc3252180b.
SPP+LE>
etGATT_Connection_Device_Connection with size 16:
Connection ID: 2.
Connection Type: LE.
Remote Device: 0x5cfc3252180b.
Connection MTU: 23.

設備現已連接。
