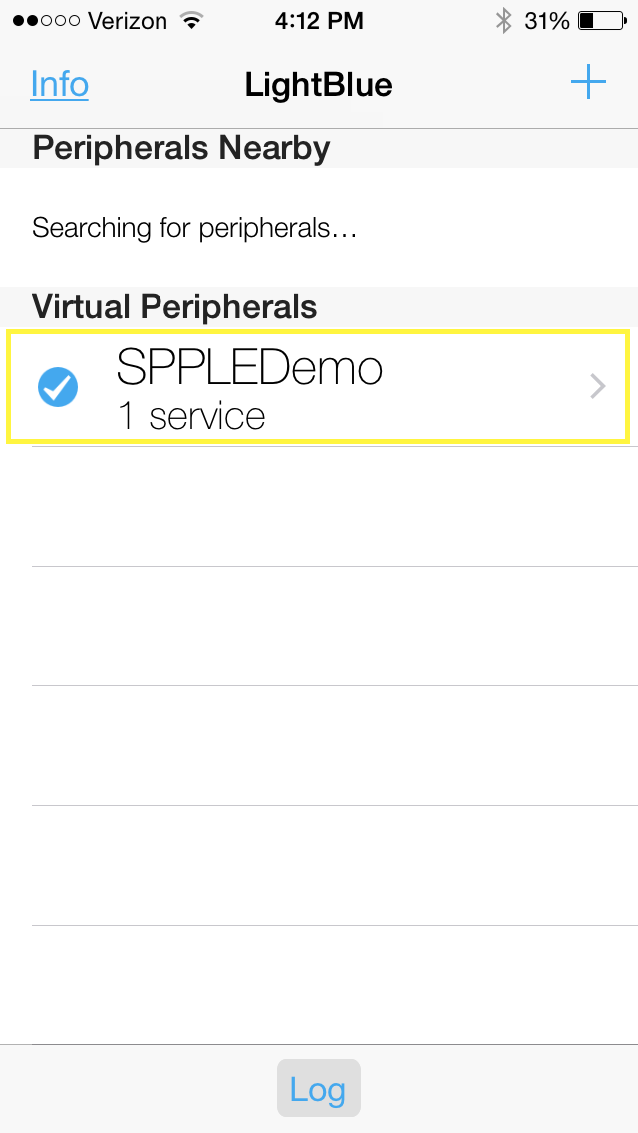

連接設備的第一步是將 SPP LE 服務和特性添加到 LightBlue 中。要手動執行此操作，請在 LightBlue 中創建一個空白的虛擬外設，然后添加必要的服務和特性。另一個選項是在 SPPLEDemo 充當服務器的同時克隆 SPPLEDemo。要克隆 SPPLEDemo，首先如上所述連接 2 個設備。連接 2 個設備后，選擇顯示屏右上角的“Clone”選項。應用返回到設備列表，您將觀察到 SPPLEDemo 列為虛擬外設，如下所示：

克隆后，SPP LE 服務現在可以與設備連接。接下來，重新啟動 SPPLEDemo，并在出現提示時啟動該應用作為客戶端。下一步，使用 StartScanning 命令進行掃描以查找 iOS 設備。找到 iOS 設備后，使用 StopScanning 命令停止掃描?，F(xiàn)在使用 ConnectLE 5c75524c733a 1 命令連接到 iOS 設備。之后，在 10 秒時間范圍內運行 DiscoverSPPLE 5c75524c733a 命令。SPP LE 服務發現完成后，在 25 秒時間范圍內運行 ConfigureSPPLE 5c75524c733a。如果命令未在這些時間范圍內運行，iOS 設備將斷開與 SPPLEDemo 的連接。配置 SPP LE 特性后，2 個應用保持連接，但請注意，如果 iOS 設備進入睡眠狀態，則會關閉連接。運行剛剛介紹的命令后，在 SPPLEDemo 的終端中將觀察到類似以下內容的輸出：

OpenStack().
Bluetooth Stack ID: 1.
Device Chipset: 4.1.
BD_ADDR: 0xd03972cdab68

 Command Options: Server, Client, Help

SPP+LE>Client

 Command Options General: Help, GetLocalAddress, SetBaudRate
 Quit,
 Command Options BR/EDR: Inquiry, DisplayInquiryList, Pair,
 EndPairing, PINCodeResponse,
 PassKeyResponse,
 UserConfirmationResponse,
 SetDiscoverabilityMode,
 SetConnectabilityMode,
 SetPairabilityMode,
 ChangeSimplePairingParameters,
 GetLocalName, SetLocalName,
 GetClassOfDevice, SetClassOfDevice,
 GetRemoteName, SniffMode,
 ExitSniffMode, Open, Close, Read,
 Write, GetConfigParams,
 SetConfigParams, GetQueueParams,
 DisplayRawModeData, AutomaticReadMode,
 SetQueueParams, Loopback,
 CBSend.
 Command Options GAPLE: SetDiscoverabilityMode,
 SetConnectabilityMode,
 SetPairabilityMode,
 ChangePairingParameters,
 AdvertiseLE, StartScanning,
 StopScanning, ConnectLE,
 DisconnectLE, PairLE,
 LEPasskeyResponse,
 QueryEncryptionMode, SetPasskey,
 DiscoverGAPS, GetLocalName,
 SetLocalName, GetLERemoteName,
 SetLocalAppearance,
 GetLocalAppearance,
 GetRemoteAppearance,
 Command Options SPPLE: DiscoverSPPLE, RegisterSPPLE, LESend,
 ConfigureSPPLE, LERead, Loopback,
 DisplayRawModeData, AutomaticReadMode

SPP+LE>StartScanning
Scan started successfully.
SPP+LE>
etLE_Advertising_Report with size 36.
1 Responses.
Advertising Type: rtConnectableUndirected.
Address Type: atRandom.
Address: 0x5c75524c733a.
RSSI: -71.
Data Length: 21.
AD Type: 0x01.
AD Length: 0x01.
AD Data: 0x1a
AD Type: 0x07.
AD Length: 0x10.
AD Data: 0x39 0x23 0xcf 0x40 0x73 0x16 0x42 0x9a 0x5c 0x41 0x7e 0x7d 0xc4 0x9a 0x83 0x14
SPP+LE>
etLE_Advertising_Report with size 36.
1 Responses.
Advertising Type: rtScanResponse.
Address Type: atRandom.
Address: 0x5c75524c733a.
RSSI: -71.
Data Length: 11.
AD Type: 0x09.
AD Length: 0x09.
AD Data: 0x53 0x50 0x50 0x4c 0x45 0x44 0x65 0x6d 0x6f
SPP+LE>StopScanning
Scan stopped successfully.
SPP+LE>ConnectLE 5c75524c733a 1
Connection Request successful.
SPP+LE>
etLE_Connection_Complete with size 16.
Status: 0x00.
Role: Master.
Address Type: Random.
BD_ADDR: 0x5c75524c733a.
SPP+LE>
etGATT_Connection_Device_Connection with size 16:
Connection ID: 1.
Connection Type: LE.
Remote Device: 0x5c75524c733a.
Connection MTU: 23.
SPP+LE>
Exchange MTU Response.
Connection ID: 1.
Transaction ID: 1.
Connection Type: LE.
BD_ADDR: 0x5c75524c733a.
MTU: 131.
SPP+LE>
SPP+LE>DiscoverSPPLE 5c75524c733a
GATT_Start_Service_Discovery success.
SPP+LE>
Service 0x000f - 0x001b, UUID: 14839ac47d7e415c9a42167340cf2339.
SPP+LE>
Service Discovery Operation Complete, Status 0x00.
SPP+LE>ConfigureSPPLE 5c75524c733a
SPPLE Service found on remote device, attempting to read Transmit Credits, and configured CCCDs.
SPP+LE>
Write Response.
Connection ID: 1.
Transaction ID: 15.
Connection Type: LE.
BD_ADDR: 0x5c75524c733a.
Bytes Written: 2.
SPP+LE>
Write Response.
Connection ID: 1.
Transaction ID: 16.
Connection Type: LE.
BD_ADDR: 0x5c75524c733a.
Bytes Written: 2.

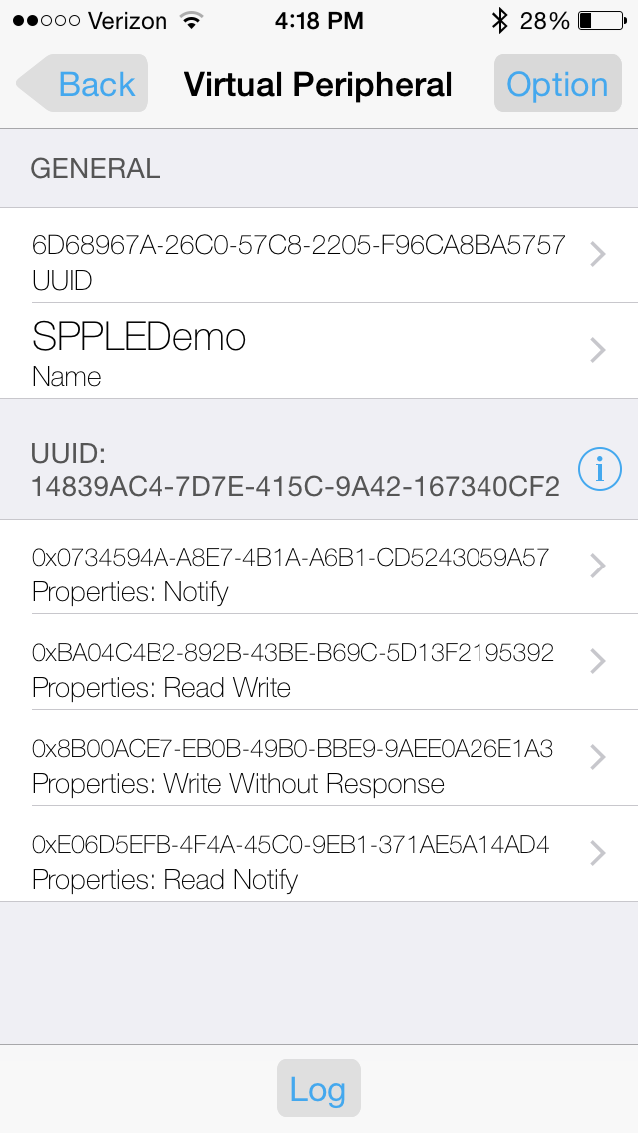

現在，2 個設備已連接并配置完畢，設備可以在它們之間發送和接收數據?，F(xiàn)在，選擇 LightBlue 中的 SPPLEDemo 虛擬外設，以查看虛擬外設的特性。將在 iDevice 的顯示屏上觀察到以下內容或類似內容：
