9.2.2 HDMI Application with Two Sinks
The HD3SS215 can be placed in applications needing to switch between two sinks. In this example, the HDMI source selects between Sink A or Sink B in the 1:2 configuration.

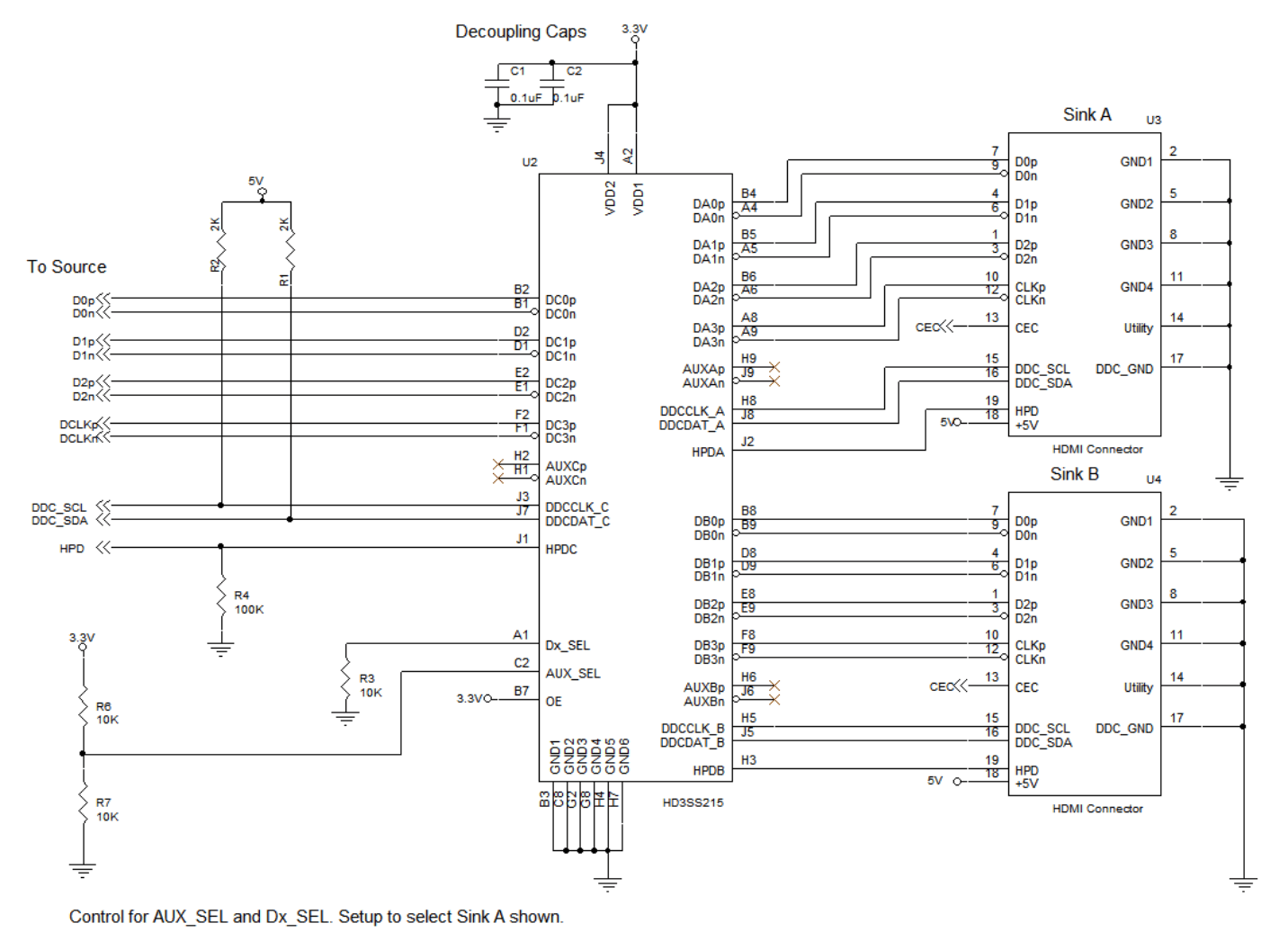

Figure 9-4 Application Diagram for a 1:2 Configuration with HDMI Source and Connectors
