8.3 Off-Leakage Current
There are two types of leakage currents associated with a switch during the off state:
- Source off-leakage current IS(OFF): the leakage current flowing into or out of the source pin when the switch is off.
- Drain off-leakage current ID(OFF): the leakage current flowing into or out of the drain pin when the switch is off.

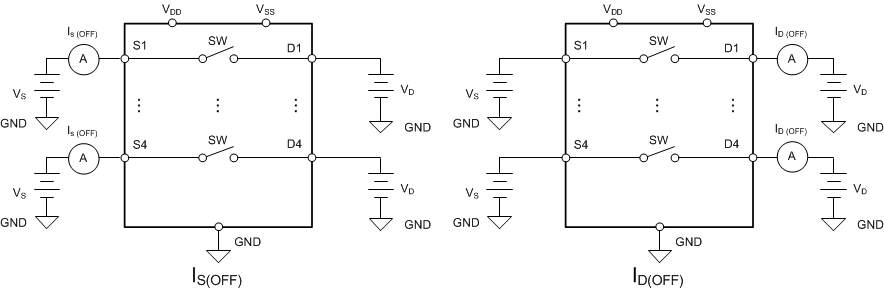

Figure 8-3 shows the setup used to measure both off-leakage currents.
Figure 8-3 Off-Leakage Measurement Setup
