8.2 Typical Application

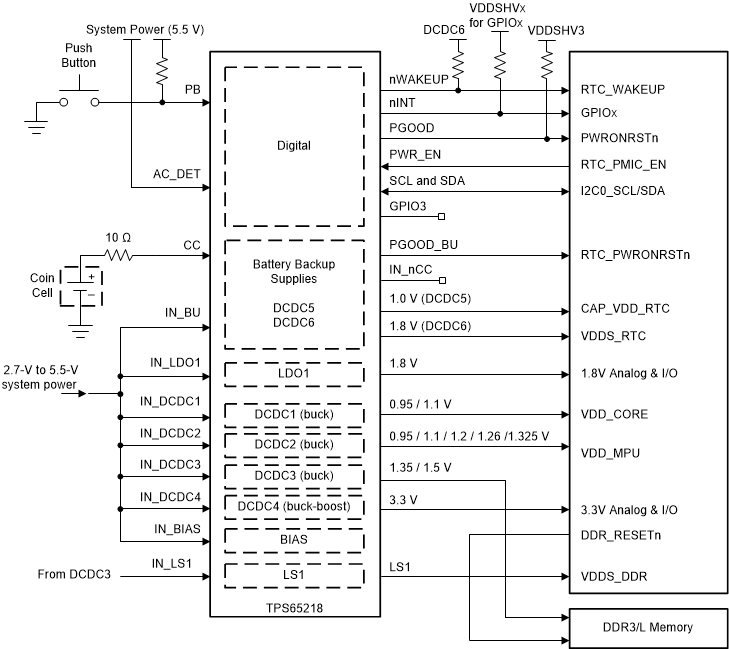

A. Block diagram shows
TPS65218D0 powering AM437x processor. For TPS6521835, refer to this Tech
Note. For TPS6521815, the wiring is not predefined and is programmed
for the specific processor in the application.
Figure 8-3 Typical Application Schematic for TPS65218D0
