7.3.1.9 Coin Cell Battery Voltage Acquisition

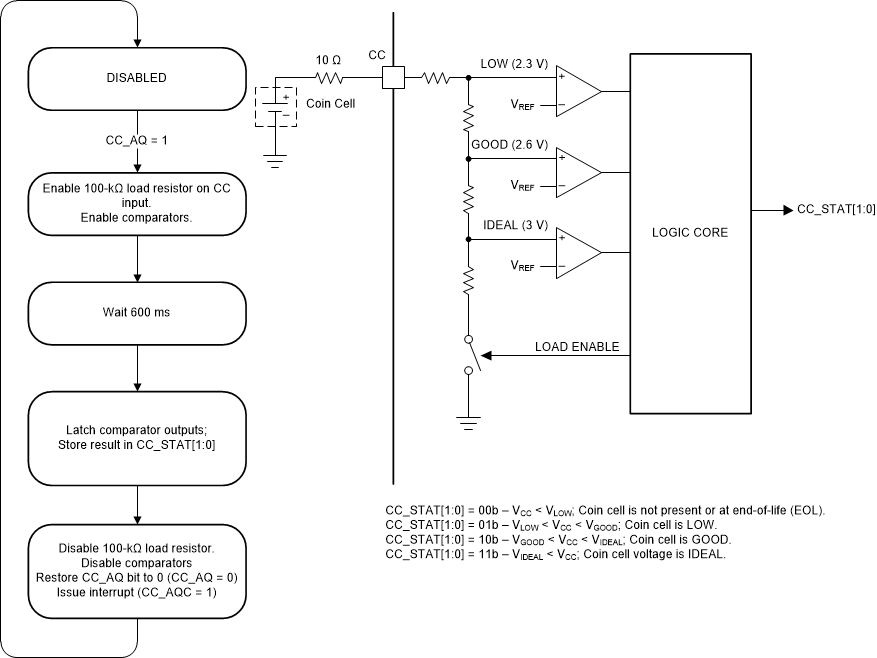

Figure 7-14 Left: Flow Chart for Acquiring Coin Cell Battery Voltage Right: Comparator Circuit
