7 Parameter Measurement Information

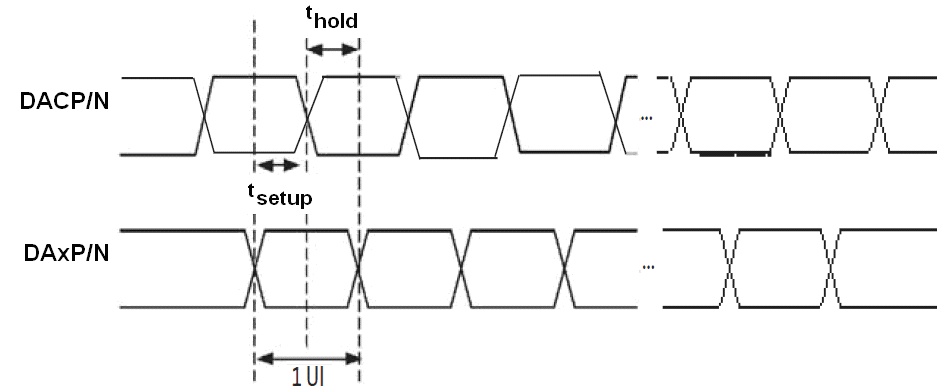

Figure 1. DSI HS Mode Receiver Timing Definitions

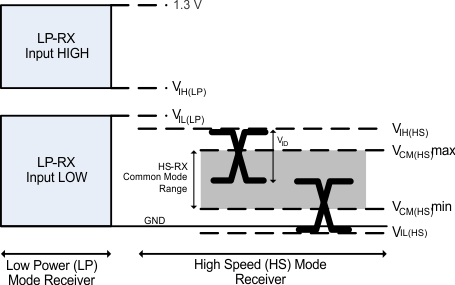

Figure 2. DSI Receiver Voltage Definitions

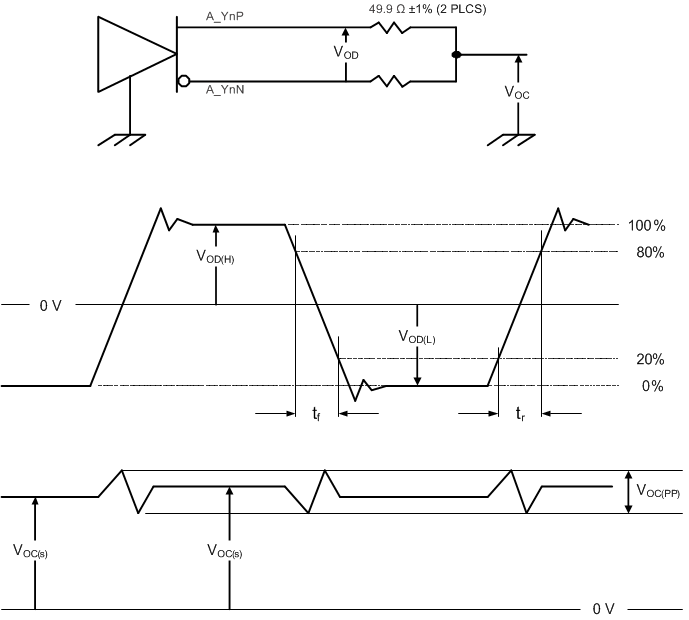

Figure 3. Test Load and Voltage Definitions for LVDS Outputs

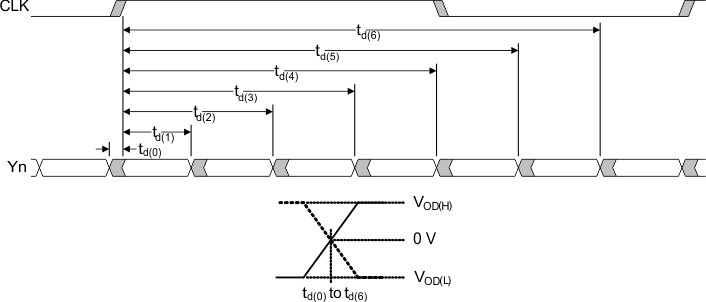

Figure 4. SN65DSI83-Q1 LVDS Timing Definitions
1. See the ULPS section of the data sheet for the ULPS entry and exit sequence.
2. ULPS entry and exit protocol and timing requirements must be met according to the MIPI DPHY specification.

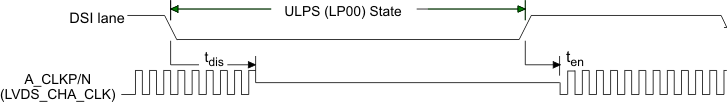

Figure 5. ULPS Timing Definition
