10.2.2.3 Application Curves

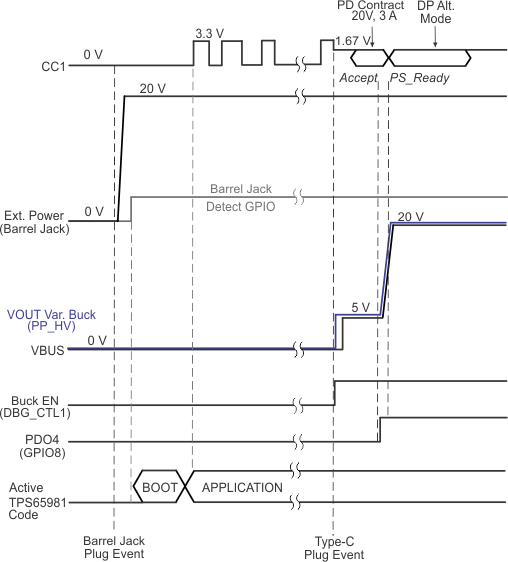

Figure 10-6 TPS65981 Variable Buck Regulator in Dock or Monitor Application Timing Diagram
