3 說明
TPS65981 是一款高度集成的獨立式 USB Type-C 和電力傳輸 (PD) 控制器，針對筆記本電腦應用進行了優(yōu)化。TPS65981 集成了全面管理的電源路徑與強大的保護功能，可提供完整的 USB-C PD 解決方案。TPS65981 集成了一個高速多路復用器，該多路復用器取決于 CC 引腳提供的 USB Type-C 電纜方向。多路復用器會傳遞用于交替模式的邊帶使用數據。TPS65981 具有用于可靠制造的 QFN 封裝（具有 0.5mm 間距并與 2 層 PCB 兼容），并具有擴展的（工業(yè)）溫度范圍。TPS65981 通過了 USB PD 2.0 認證，不可再通過 USB IF 進行認證。
器件信息(1)
| 器件型號 | 封裝 | 封裝尺寸（標稱值） |
|---|---|---|
| TPS65981 | VQFN (56) | 8.00mm x 8.00mm |
(1) 如需了解所有可用封裝，請參閱數據表末尾的可訂購產品附錄。

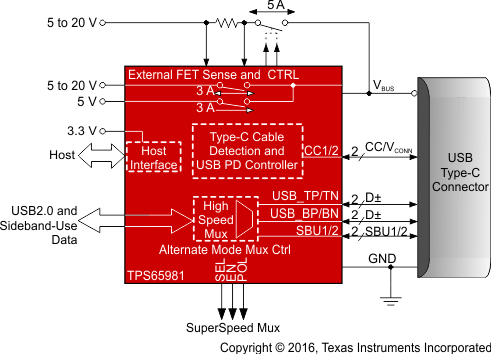

簡化版圖表
