After performing power gain correction, do the phase calibration. To perform phase correction calibration, complete the following steps:

1. If the AC test source has been turned OFF or reconfigured, perform steps 1 through 3 from Section 4.1.2.2.2 using the identical voltages and currents used in that section.
2. Modify only the phase-shift to a non-zero value; typically, +60° is chosen. The reference meter now displays a different % error for active power measurement.
   Note: This value can be negative.
3. If the error from 2 is not close to zero, or is unacceptable, perform phase correction by following these steps:
   1. Enter a value as an update for the Phase correction field for the phase that is being calibrated. Usually, a small ± integer must be entered to bring the error closer to zero. Additionally, for a phase shift greater than 0 (for example: +60°), a positive (negative) error requires a positive (negative) number as correction.
   2. Click on the Update meter button and monitor the error values on the reference meter.
   3. If this measurement error (%) is not accurate enough, fine-tune by incrementing or decrementing by a value of 1 based on 1. After a certain point, the fine-tuning only results in the error oscillating on either side of zero. The value that has the smallest absolute error must be selected.
   4. Change the phase now to –60° and check if this error is still acceptable. In best practice, errors must be symmetric for the same phase shift on lag and lead conditions.

After performing phase calibration, calibration is complete. Figure 4-6 shows the new calibration factors.

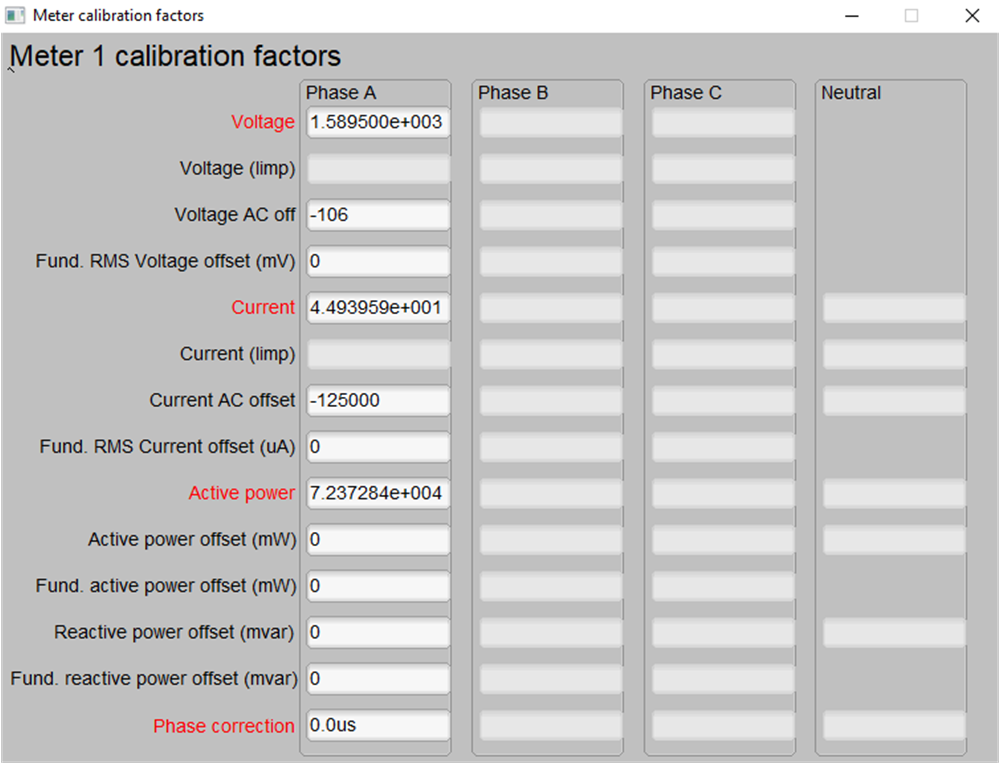

Figure 4-6 Calibration Factors Window
