8.3.7 50mA, Constant-Current, Battery-Charger Circuit
Use the current-limit operation mode to trickle charge a battery at a fixed current. ICHG = 1.25V ÷ 24Ω. Make sure VI is greater than VBAT + 4.25V. (1.25V [VREF] + 3V [headroom]). Figure 8-12 shows a diagram of a battery-charger circuit.

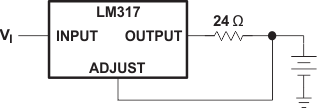

Figure 8-12 50mA, Constant-Current,
Battery-Charger Circuit
