8.3.11 Adjustable 4A Regulator Circuit
This application keeps the output current at 4A while having the ability to adjust the output voltage using the adjustable (1.5kΩ in Figure 8-16) resistor.

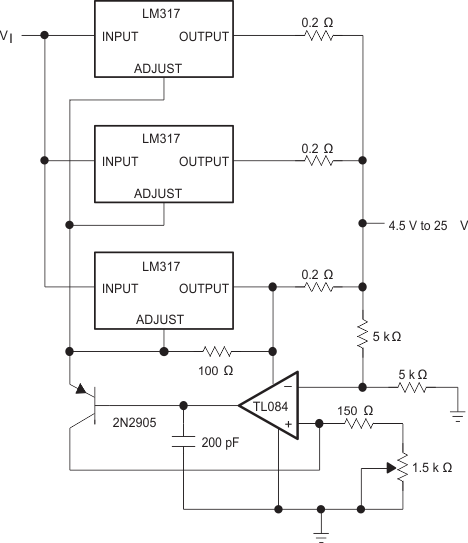

Figure 8-16 Adjustable 4A Regulator
Circuit
