8.3.9 AC Voltage-Regulator Circuit

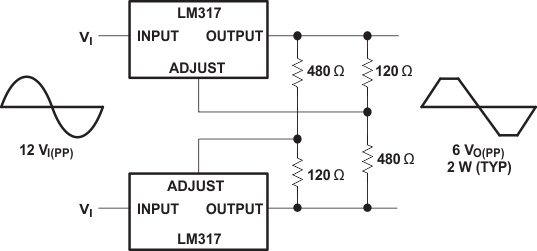

Figure 8-14 shows a circuit employing two LM317 devices. These two LM317 devices regulate both the positive and negative swings of a sinusoidal AC input.
Figure 8-14 AC Voltage-Regulator Circuit
