8.3.3 Precision Current-Limiter Circuit
This application limits the output current to ILIMIT in Figure 8-8.

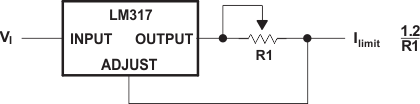

Figure 8-8 Precision Current-Limiter Circuit
