Digital logic thresholds

Input logic thresholds = the voltage range a logic device will sense a logic high or low as specified in the data sheet. Applying an input voltage outside of this range to the device will have unpredictable results.

Output logic thresholds = the output voltage range of a logic device driving a logic high or low as specified in the data sheet. The output level range is normally specified with current loads (sourcing for logic high and sinking for logic low).

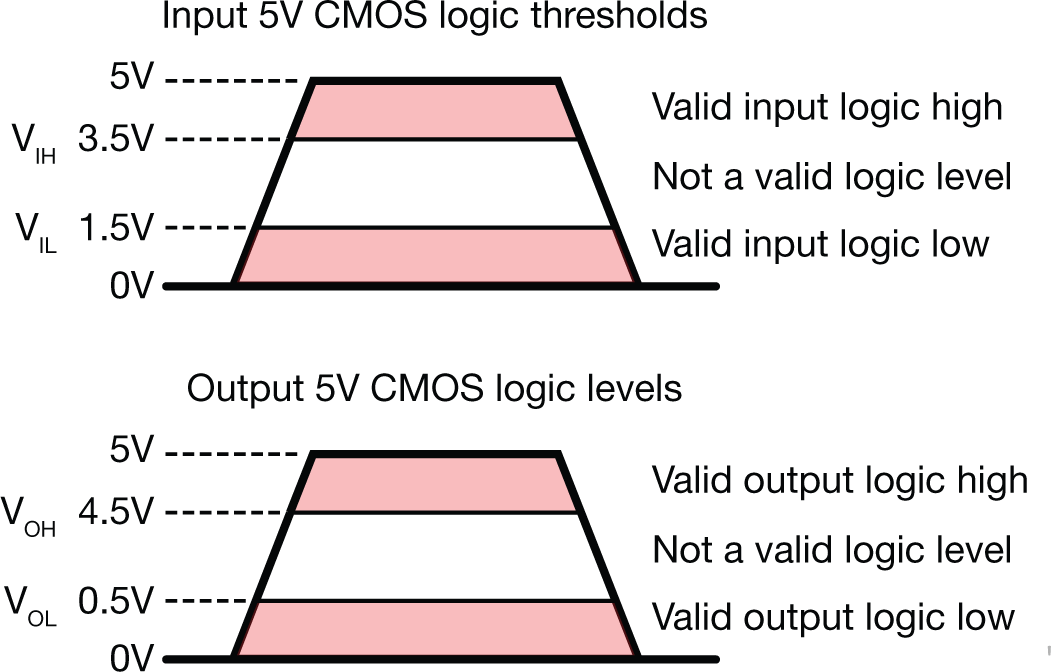

Figure 76 Valid input logic levels for 5V CMOS

Table 33 CMOS logic thresholds

	5V CMOS		3.3V CMOS		2.5V CMOS	1.8V CMOS
V_CC	5.0		3.3		2.5	1.8
V_OH	4.5	0.9? VCC	2.97	0.9? VCC	2.0	1.35
V_IH	3.5	0.7? VCC	2.31	0.7? VCC	1.7	1.17
V_IL	1.5	0.3? VCC	0.99	0.3? VCC	0.7	0.63
V_OL	0.5	0.1? VCC	0.33	0.1? VCC	0.4	0.45
GND	0.0		0.0		0.0	0.0

Table 34 TTL logic thresholds

	5V TTL	3.3V LVTTL
V_CC	5.0	3.3
V_OH	2.4	2.4
V_IH	2.0	1.5
V_IL	0.8	0.8
V_OL	0.4	0.4
GND	0.0	0.0

Where

V_CC and GND = supply voltage and ground for the device

V_OH = minimum output logic high level

V_IH = minimum input high logic level

V_IL = maximum input logic low level

V_OL = maximum output logic low level
