Settling time and conversion accuracy

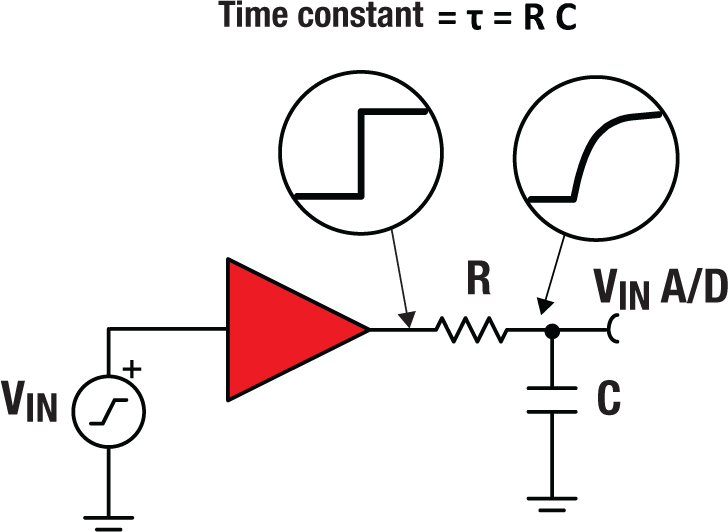

Figure 94 Settling time for RC circuit-related to ADC converters

Table 37 Conversion accuracy achieved after a specified time

Settling time in time constants (N_TC)	Accuracy in bits (N)	Settling time in time constants (N_TC)	Accuracy in bits
1	1.44	10	14.43
2	2.89	11	15.87
3	4.33	12	17.31
4	5.77	13	18.76
5	7.21	14	20.20
6	8.66	15	21.64
7	10.10	16	23.08
8	11.54	17	24.53
9	12.98	18	25.97

Equation 220.

N = \log_{2} (e^{? N_{TC}})

Where

N = the number of bits of accuracy the RC circuit has settled to after N_TC number of time constants

N_TC = the number of RC time constants. Where one time constant equals R?C.

Note: For a FSR step. For single-ended input ADC with no PGA front end, FSR (full-scale range) = V_REF.

Table 38 Time required to settle to a specified conversion accuracy

Accuracy in bits (N)	Settling time in time constants (N_TC)	Accuracy in bits (N)	Settling time in time constants (N_TC)
8	5.5	17	11.78
9	6.24	18	12.48
10	6.93	19	13.17
11	7.62	20	13.86
12	8.32	21	14.56
13	9.01	22	15.25
14	9.70	23	15.94
15	10.40	24	16.64
16	11.04	25	17.33

Equation 221.

N_{TC} = \ln (2^{N})

Where

N_TC = the number of time constants required to achieve N bits of settling. Where one time constant equals R·C.

N = the number of bits of accuracy

Note: For a FSR step. For single-ended input ADC with no PGA front end, FSR (full-scale rangee) = V_REF.
