START = initiated by the master pulling SDA low while SCL is high
STOP = initiated by the master releasing the SDA pin high while SCL is high
ACK (acknowledge) = each transfer in I2C is a single byte or 8-bits, with one SCL pulse per bit. The 9th pulse in each exchange is reserved for an acknowledgement signal from the slave, or an ACK signal. The ACK signal indicates that the previous transfer was successful.

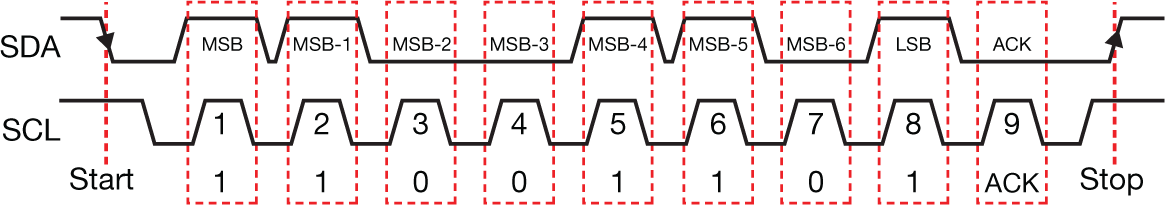

Example I2C write sequence:

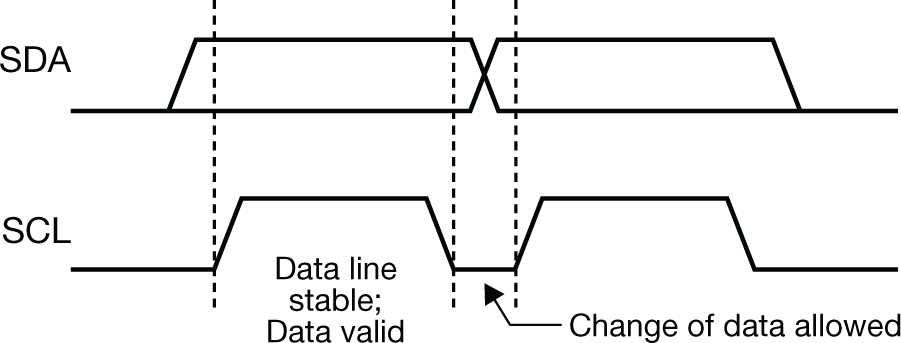

For valid data transfer:
