Basic op amp configurations

Gain for buffer configuration

Equation 76.

G_{CL} = 1

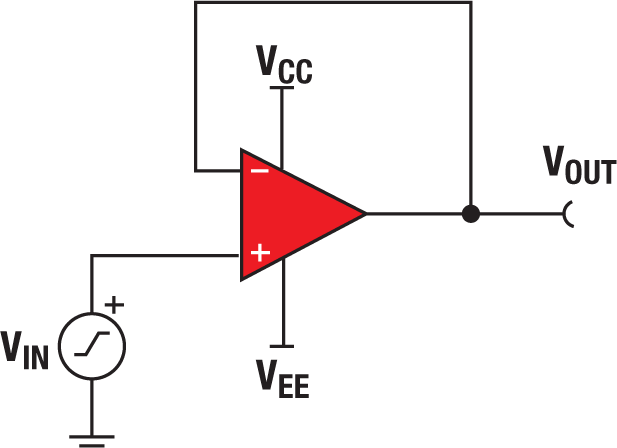

Figure 27 Buffer configuration

Gain for non-inverting configuration

Equation 77.

G_{CL} = \frac{R_{f}}{R_{1}} + 1

Input impedance. See data sheet for value, but typically greater than 100MΩ to 100TΩ.

Equation 78.

Z_{in} = Op amp input impdeance

The common mode voltage is equal to the input signal. Check for common mode limitations.

Equation 79.

V_{cm} = V_{IN}

Figure 28 Non-inverting configuration

Gain for inverting configuration

Equation 80.

G_{CL} = ? \frac{R_{f}}{R_{1}}

Input impedance. Low compared to the non-inverting configuration.

Equation 81.

Z_{in} = R_{1}

The common mode voltage held constant at 0V so the common mode range and CMRR is not a concern

Equation 82.

V_{cm} = OV

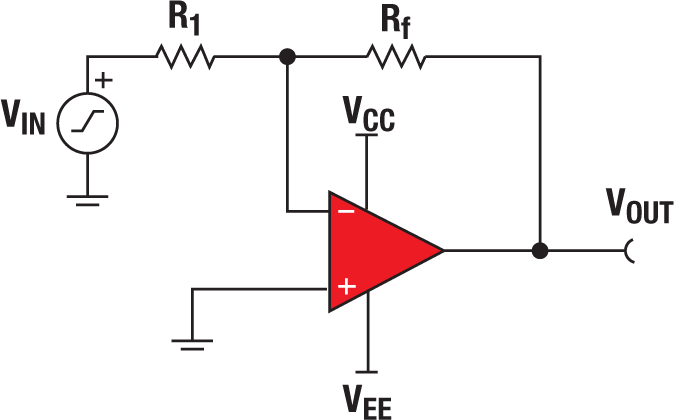

Figure 29 Inverting configuration

Transfer function for inverting summing amplifier

Equation 83.

V_{OUT} = ? R_{f} (\frac{V_{1}}{R_{1}} + \frac{V_{2}}{R_{2}} + \dots + \frac{V_{N}}{R_{N}})

Transfer function for inverting summing amplifier, assuming R₁ = R₂ = … = R_N

Equation 84.

V_{OUT} = ? \frac{R_{f}}{R_{1}} (V_{1} + V_{2} + \dots + V_{N})

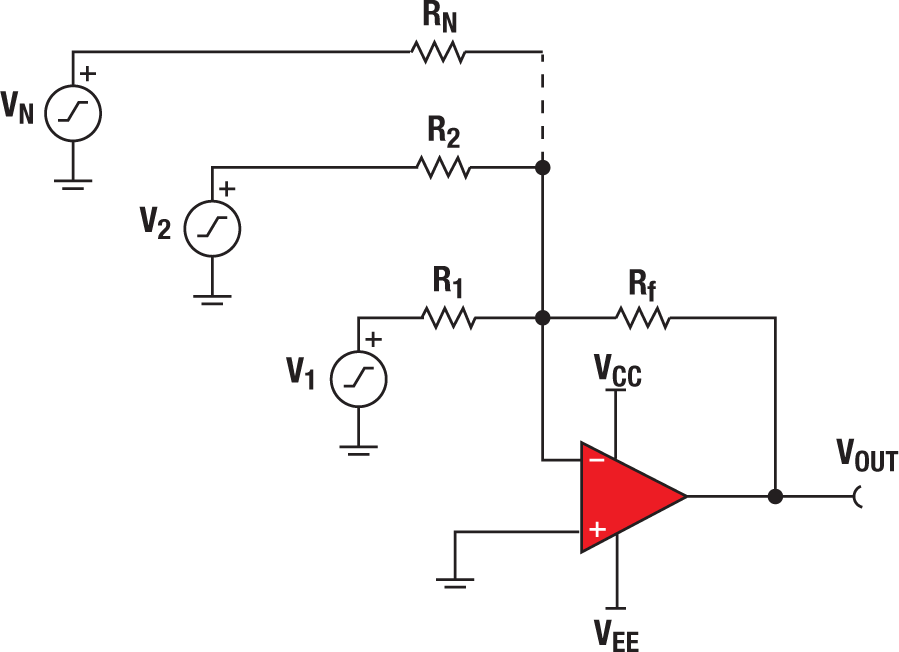

Figure 30 Inverting summing configuration

Transfer function for noninverting summing amplifier for equal input resistors

Equation 85.

V_{OUT} = (\frac{R_{f}}{R_{in}} + 1) [\frac{V_{1}}{N} + \frac{V_{2}}{N} + \dots + \frac{V_{N}}{N}]

Where

R₁ = R₂ = … = R_N

N = number of input resistors

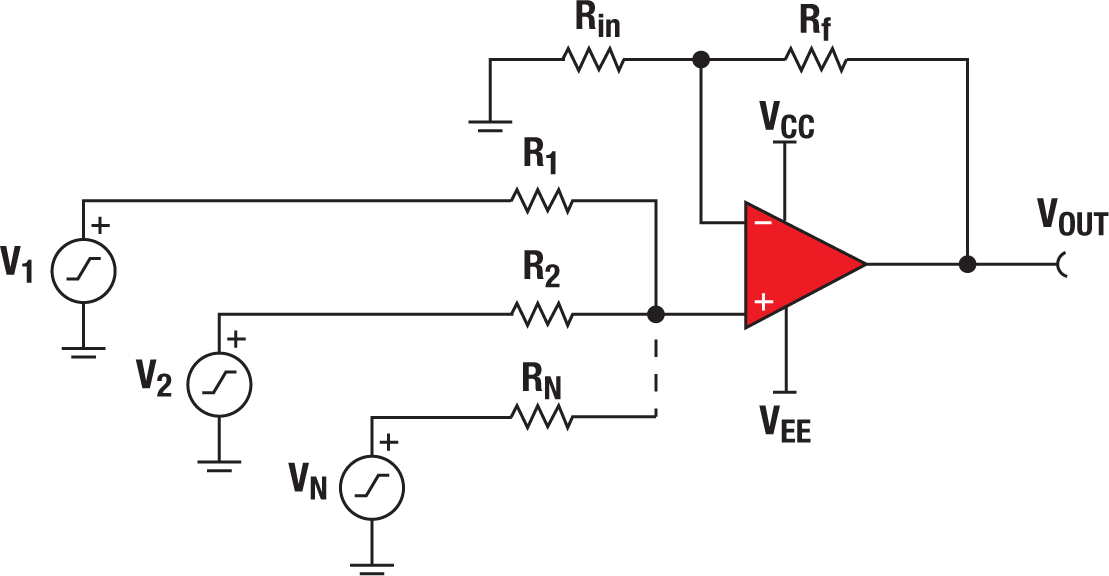

Figure 31 Non-inverting summing configuration
