Full power bandwidth

Maximum output without slew-rate induced distortion

Equation 107.

V_{P} = \frac{SR}{2 πf}

Where

V_P = maximum peak output voltage before slew induced distortion occurs

SR = slew rate

f = frequency of applied signal

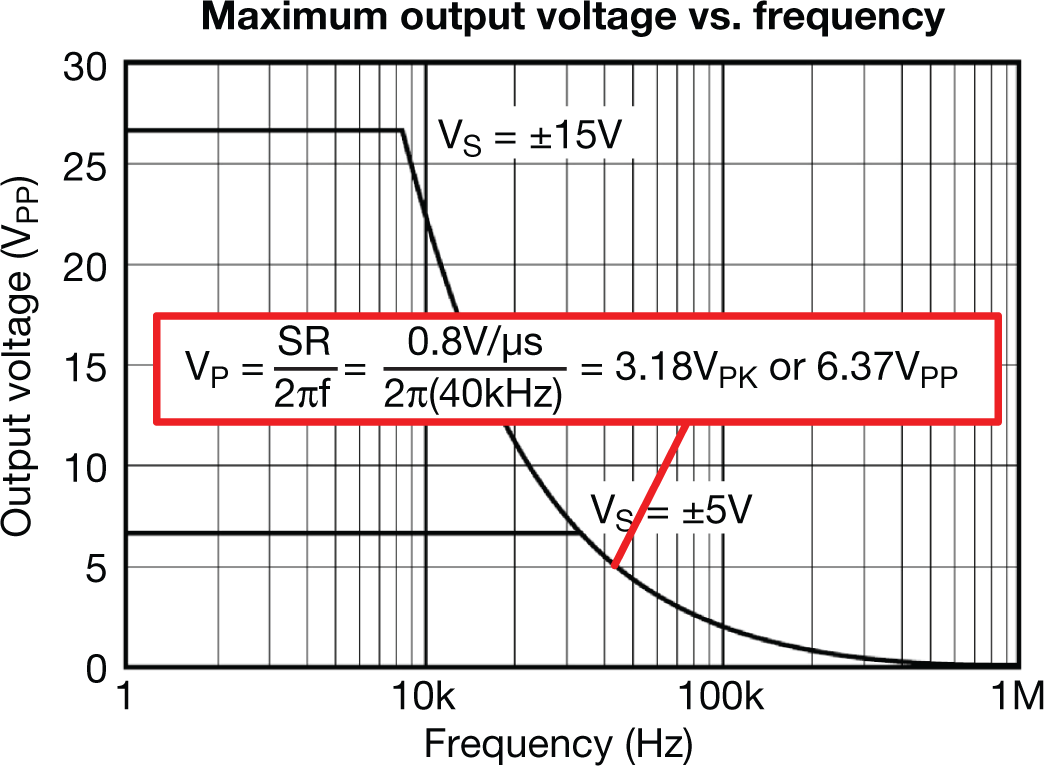

Figure 40 Maximum output without slew-rate induced distortion

Notice that the above figure is graphed using Equation 100 for the OPA277. The example calculation shows the peak voltage for the OPA277 at 40kHz. This can be determined graphically or with the equation.

Example

Equation 108.

V_{P} = \frac{SR}{2 πf} = \frac{0.8 V / μs}{2 π (40 kHz)} = 3.18 V_{PK} ? or ? 6.37 V_{PP}
