ON and OFF capacitance (C_ON/ C_OFF)

C_OFF = parasitic capacitance when the switch is OFF

Equation 236.

C_{OFF} = C_{S} (on source side) ? {or C}_{D} (on drain side)

C_ON = parasitic capacitance when the switch is ON C_ON ≈ C_S+ C_D

Equation 237.

C_{ON} \approx C_{S} + C_{D}

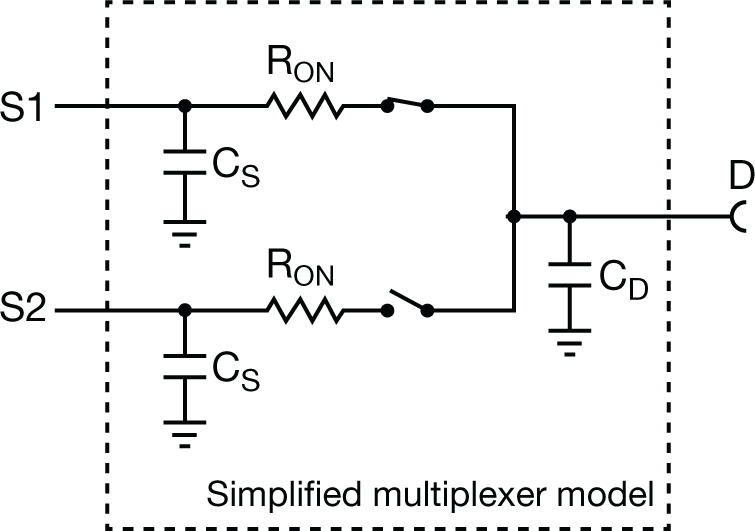

Figure 110 Simplified model for MUX parasitic capacitance calculation

Design tips

Equation 238.

Settling time = t_{TRANSITION} + (R_{ON} \cdot C_{D} \cdot K)

Where

t_TRANSITION = MUX channel-to-channel transition time (refer to MUX specification)

R_ON = switch ON-resistance between sources and drain

C_D = switch drain parasitic capacitance

K = number of time constants to settle to a N bit resolution ADC, K = ln(2^N)

MUX settling time with C _LOAD and R _LOAD

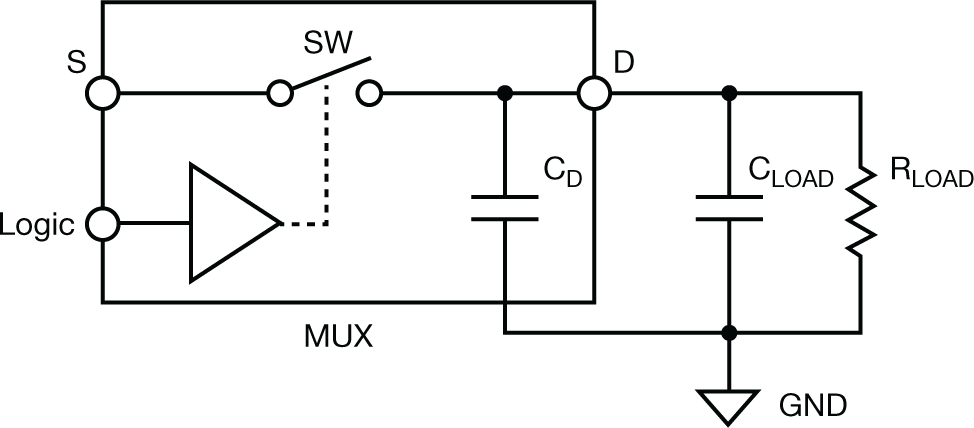

Figure 111 Simplified model for MUX settling time calculation

Equation 239.

Settling time = t_{TRANSITION} + \frac{R_{ON} \cdot R_{LOAD}}{R_{ON} + R_{LOAD}} (C_{LOAD} + C_{D}) \cdot K

Where

t_TRANSITION = MUX channel-to-channel transition time (refer to MUX specification)

R_ON = switch ON-resistance between sources and drain

R_LOAD = resistor connected to MUX output

C_LOAD = capacitor connected to MUX output

C_D = switch drain parasitic capacitance

K = number of time constants to settle to a N bit resolution ADC, K = ln(2^N)

Example

Determine the settling time of a MUX to 14-bit accuracy.

R_ON=125Ω; C_D(OFF) =7.5pF

R_LOAD=1kΩ; C_LOAD=5pF

t_TRANSITION=92ns

Answer

Equation 240.

Settling time = 92 ns + \frac{125 \cdot 1000}{125 + 1000} \cdot (5 pF + 7.5 pF) \cdot \ln (2^{14}) = 105.5 ns
