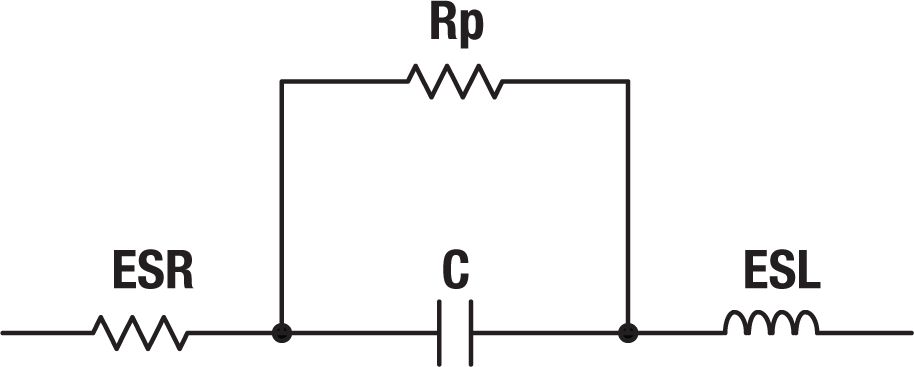

Parameter | Description |
---|---|
C |
The nominal value of the capacitance Table 12 lists standard capacitance values |
ESR |
Equivalent series resistance Ideally this is zero Ceramic capacitors have the best ESR (typically in milliohms). Tantalum Electrolytic have ESR in the hundreds of milliohms and Aluminum Electrolytic have ESR in the ohms |
ESL |
Equivalent series inductance Ideally this is zero ESL ranges from 100 pH to 10 nH |
Rp |
Rp is a parallel leakage resistance (or insulation resistance) Ideally this is infinite This can range from tens of megaohms for some electrolytic capacitors to tens of gigohms for ceramic |
Voltage rating |
The maximum voltage that can be applied to the capacitor Exceeding this rating damages the capacitor |
Voltage coefficient |
The change in capacitance with applied voltage in ppm/V A high-voltage coefficient can introduce distortion C0G capacitors have the lowest coefficient The voltage coefficient is most important in applications that use capacitors in signal processing such as filtering |
Temperature coefficient |
The change in capacitance with across temperature in ppm/°C Ideally, the temperature coefficient is zero The maximum specified drift generally ranges from 10 to 100ppm/°C or greater depending on the capacitor type (See Table 11 for details) |
