1.1 理想與非理想開關

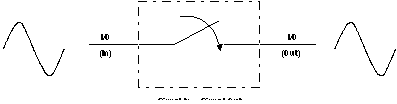

首次考慮開關時，可能會想到理想開關的原理圖（類似于圖 1-1）。
圖 1-1 理想開關施加到圖 1-1 左側 I/O 引腳（或端口）的輸入信號在右側 I/O 引腳上產生相同的輸出信號，反之亦然。但是，在現實世界中，開關并不是理想的，總會有一些損耗。對于正常工作的機械開關，其損耗極小，幾乎注意不到。

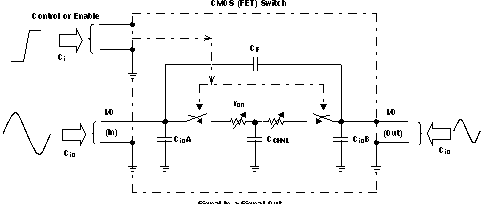

像機械開關一樣，固態開關也不理想。實際上，固態開關相關的損耗可能很大。如果距離理想情況如此之遠，為何要使用這樣的開關？答案是方便。與繼電器等傳統的電控開關相比，固態開關的體積小、速度快、易于使用、易于控制，并且消耗的功率相對較少。本應用報告中提到的開關為互補金屬氧化物半導體 (CMOS) 場效應晶體管 (FET) 開關。如前所述，這些開關并不理想，因此我們需要一種方法來檢查和比較不同 CMOS 系列的性能特征。圖 1-2 示出了 CMOS 開關的簡化電路模型。
圖 1-2 CMOS (FET) 開關的行為模型輸出信號（圖 1-2 右側）因開關的寄生效應發生了改變。結果可能包括幅度降低、信號失真、相移、噪聲引入以及頻率衰減。
影響非理想特性的參數包括：
- Ci - 控制（啟用）引腳輸入電容
- Cio - 從開關的輸入端或輸出端測得的電容
- CCHNL - NMOS (PMOS) 通道電容
- RON - 由于開關路徑接通后插入信號路徑的電阻
- CF - 饋通電容；較低頻率或開關閉合時可忽略不計。
